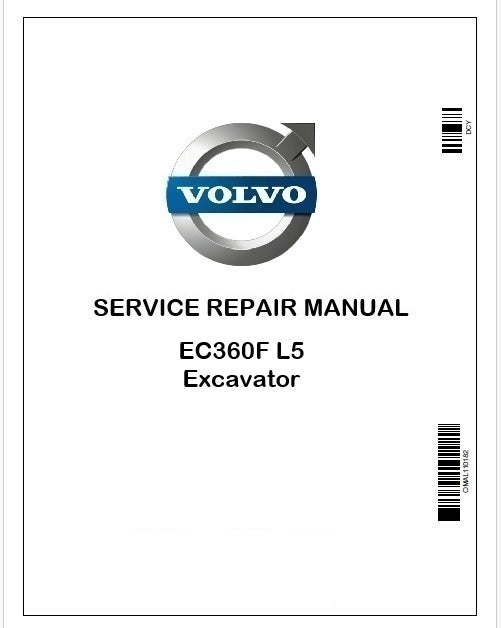

Volvo EC360F L5 Excavator Repair Service Pdf Manual

Repair & Service Manual with Wiring Diagrams Overview

The Volvo EC360F L Excavator PDF Repair & Service Manual is the definitive technical authority designed for the professional maintenance and mechanical overhaul of this heavy-duty 36-ton class crawler excavator. Covering all applicable serial number ranges, this manual provides the specific factory procedures required to maintain the advanced electro-hydraulic system, the low-emission powertrain, and the robust reinforced undercarriage of the EC360F L series.

The Volvo EC360F L represents the pinnacle of F-Series technology, delivering faster cycle times and up to 15% greater fuel efficiency. Powered by a high-torque Volvo Turbo Diesel Engine, it utilizes the intelligent Volvo Electro-Hydraulic System with ECO Mode to optimize flow and pressure. Maintaining the AdBlue/DEF aftertreatment system, the main control valve, and the Dig Assist machine control system is critical for maximizing productivity. This service manual is the essential reference for technicians diagnosing active regeneration faults, calibrating joystick response, and troubleshooting the Co-Pilot display.

Machine & Powertrain Information

The EC360F L is powered by a high-efficiency Volvo 6-Cylinder Diesel Engine designed to meet Tier 4 Final / Stage V emissions standards. This manual covers the specific maintenance requirements for this industrial power plant, including the high-pressure common rail fuel system, variable geometry turbocharger, Diesel Particulate Filter (DPF), and Selective Catalytic Reduction (SCR) system.

The machine features a fully Electro-Hydraulic Control System that replaces traditional pilot lines with electric signals for precise control. Our manual guides you through the service of the electronic main pump, the swing motor, and the travel motors ensuring smooth and responsive operation.

Systems & Service Coverage

• Complete repair procedures for Volvo EC360F L Excavator
• Engine Overhaul: Volvo Diesel Engine (Cylinder Block, Head, Fuel Injectors, Turbocharger, EGR, SCR, and DPF Regeneration)
• Hydraulic System: Main pump flow testing, electro-hydraulic control valve repair, and cylinder resealing (Boom/Arm/Bucket)
• Electrical System: Wiring diagrams, fuse panel layouts, ECU logic, Volvo Co-Pilot diagnostics, and Dig Assist sensor calibration
• Undercarriage: Track chain replacement, idler and roller service, track tensioning, and sprocket wear limits
• Swing System: Swing motor repair, reduction gear overhaul, and slew bearing replacement
• Drive System: Travel motor repair, planetary final drive service, and hydraulic brake testing
• Cab & Controls: Joystick electronic calibration, HVAC system service, and seat suspension maintenance
• Preventive maintenance schedules, fluid capacities, and lubrication charts
• Torque specifications and safety protocols for working on heavy excavators

Manual Specifications

• Machine Model: Volvo EC360F L Excavator
• Series: F-Series
• Configuration: Crawler (L - Long Undercarriage)
• Manual Type: Repair & Service Manual
• Format: PDF Digital Download
• Language: English
• Total Pages: 1200+
• File Size: Approximately 130MB
• Illustrations: Detailed schematics, hydraulic flow diagrams, and exploded views
• Device Compatibility: Windows, macOS, Android, iOS

Why This Service Manual Is Important

• Contains factory-verified repair instructions for Volvo EC360F L excavators
• Essential for diagnosing emissions system faults (DPF/DEF) and electro-hydraulic codes
• Reduces downtime by enabling precise repair of the swing motor and travel drives
• Ensures proper calibration of the Dig Assist system for grading accuracy
• Vital for mining operations, large-scale construction, and heavy equipment mechanics
• Clear, searchable layout with hyperlinked sections for fast navigation
• Instant access to critical wiring diagrams and hydraulic schematics
