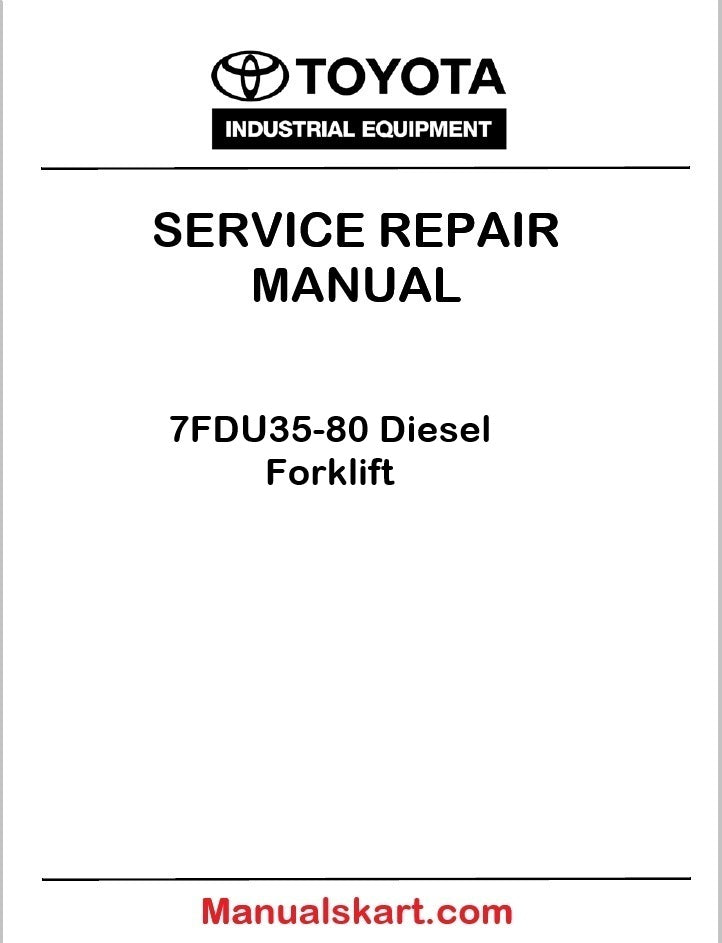

Toyota 7FDU35-80 Diesel Forklift PDF Repair Service Manual

Toyota 7FDU35-80 Diesel Forklift PDF Repair Service Manual

The Toyota 7FDU35-80 PDF Repair Service Manual is a dedicated workshop reference for Toyota's heavy-capacity diesel forklift series, covering the 7FDU35, 7FDU45, 7FDU60, 7FDU70, and 7FDU80 configurations represented by the 35-80 model range. The documented repair material includes the engine, torque converter and transmission, propeller shaft, differential, front and rear axles, steering, brakes, mast, cylinders, oil pump, oil control valve, material-handling system, and SAS. The main service documentation covers the series as of December 2000, with later update material available for subsequent changes.

These models span approximately 8,000 to 17,500 lb capacity classes, with the 7FDU35 rated at 8,000 lb, 7FDU45 at 10,000 lb, 7FDU60 at 13,500 lb, 7FDU70 at 15,500 lb, and 7FDU80 at 17,500 lb at a 24-inch load center.

7FDU35-80 Machine Information

Capacity Differences Across the Series

Toyota's published 7-series specifications list these capacities at a 24-inch load center, confirming that the 7FDU35-80 range moves from the 8,000-lb class through the 17,500-lb class rather than representing a single-capacity forklift.

When a 7FDU Loses Drive Performance

A heavy forklift that still runs but develops poor acceleration, delayed engagement, abnormal travel, or drivetrain noise needs a power-transfer diagnosis rather than an engine assumption. The repair manual dedicates separate sections to the torque converter and transmission, propeller shaft, differential, and axles, allowing the technician to follow the driveline from the power source toward the wheels.

This is particularly useful on the higher-capacity 7FDU60, 7FDU70, and 7FDU80 machines, where a travel complaint can involve multiple drivetrain assemblies.

Engine and Powertrain Repair

The engine section provides forklift-level service information, while Toyota's documentation notes that detailed work on the mounted engine should be supported by the appropriate separate engine repair manual. This distinction is important when a fault moves from normal forklift service into internal engine repair.

The same service documentation covers the torque converter and transmission, giving technicians a practical reference when engine operation is normal but the forklift is not transferring power correctly.

Mast and Hydraulic Component Service

When the truck travels correctly but develops slow lifting, hydraulic leakage, abnormal mast movement, or inconsistent fork response, the relevant repair path moves to the material-handling system. The documented sections include the mast, cylinder, oil pump, and oil control valve, providing component-specific service information for the lifting system.

That coverage is particularly useful when several hydraulic components could produce similar symptoms and the technician needs to identify the affected assembly before dismantling it.

Steering, Brakes and Axles

The manual also covers the mechanical systems responsible for controlling and stopping these large-capacity forklifts. Separate sections for the front axle, rear axle, steering, and brake systems provide a useful reference when steering becomes difficult, braking performance changes, or abnormal axle movement appears during inspection.

System of Active Stability (SAS)

The SAS section is another important part of this Toyota documentation. Because the 7FDU series incorporates Toyota's System of Active Stability, the service information includes the system as a dedicated technical area rather than leaving it outside the repair documentation.

For technicians diagnosing a machine whose stability-related functions or associated controls are behaving differently, having SAS-specific information alongside the chassis and material-handling sections is valuable.

Repair Manual Coverage

The published section index confirms these major repair areas and also identifies an appendix containing supporting technical information.

Manual Specifications

The CU030 documentation states that it covers the 7FGU/7FDU35-80 series and 7FGCU35-70 series as of December 2000, and warns that later design or specification changes can create differences between the manual and an individual truck.

Important Model Verification Note

The 7FDU35-80 designation represents a range of different capacity models, not one identical specification across every truck. Toyota's own model tables distinguish the 35, 45, 60, 70, and 80 configurations by load capacity. Confirm the model and frame information on the actual forklift before applying a specific repair procedure, adjustment, or specification.

Digital PDF Features

• Searchable technical repair information
• Detailed component and system sections
• Zoomable technical illustrations
• Printable pages for workshop use
• Convenient digital access during repair jobs

Who Would Use This Manual?

This manual is intended for the technician actually working on these heavy-capacity diesel forklifts—such as a Toyota forklift mechanic, fleet repair specialist, industrial equipment technician, or independent workshop. It is particularly useful when the repair involves drivetrain disassembly, hydraulic components, mast work, steering or brakes, or SAS-related diagnosis.

Model-Specific FAQs

Which 7FDU models are included in the 35-80 range?

The documented range includes the 7FDU35, 7FDU45, 7FDU60, 7FDU70, and 7FDU80.

What are the capacity classes?

The published specifications identify 8,000 lb for the 7FDU35, 10,000 lb for the 7FDU45, 13,500 lb for the 7FDU60, 15,500 lb for the 7FDU70, and 17,500 lb for the 7FDU80 at a 24-inch load center.

Does the manual cover the torque converter and transmission?

Yes. Torque Converter & Transmission is a dedicated section in the repair documentation.

Can it be used for mast and hydraulic repairs?

Yes. The documented coverage includes the material-handling system, mast, cylinder, oil pump, and oil control valve.

Does the manual include SAS information?

Yes. SAS (System of Active Stability) is listed as a dedicated section.

What is the main CU030 reference date?

The main service documentation deals with the covered series as of December 2000. Later design or specification changes may differ from that reference.

Final Product Summary

The Toyota 7FDU35-80 PDF Repair Service Manual is a repair-oriented reference for Toyota's 8,000- to 17,500-lb diesel forklift range. Its coverage reaches from the powertrain and axles to steering, brakes, mast, hydraulic components, and SAS, giving technicians a focused source for component diagnosis and hands-on repair.
