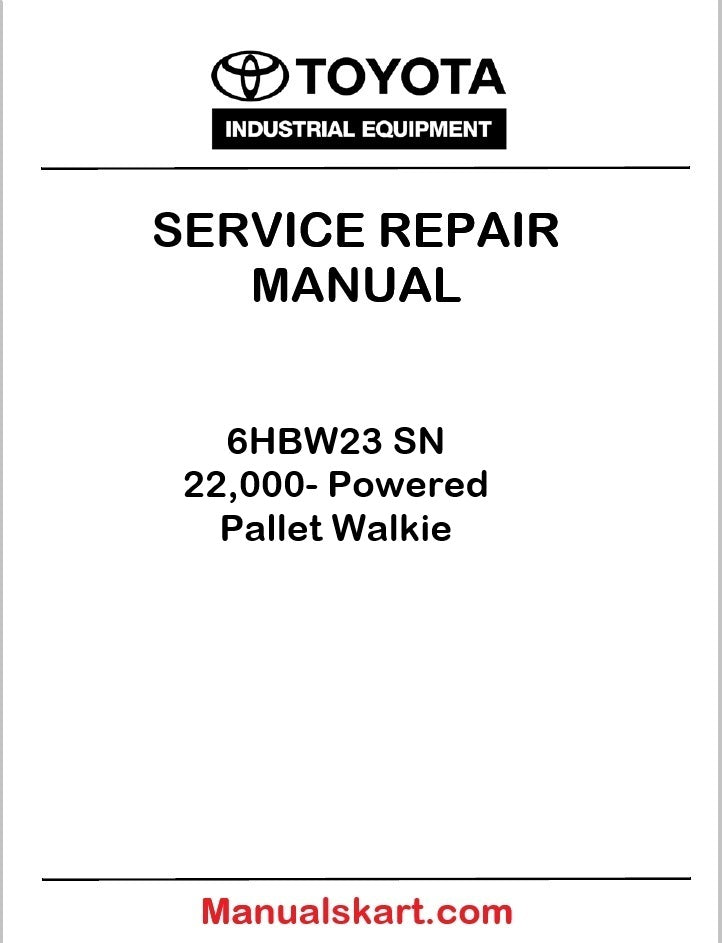

The Toyota 6HBW23 SN 22,000- PDF Repair Service Manual, publication 00700-CL340-2, is the service reference for the 6HBW23 powered pallet walkie in this serial-number range. Issued June 1, 2004, the manual covers vehicle specifications, planned maintenance, electrical and hydraulic troubleshooting, control-handle programming, service display functions, fault codes, component procedures, drive unit, electromagnetic brake, drive motor, pallet forks, load wheels, and schematics.

6HBW23 Machine Specifications

The Toyota service manual identifies the 6HBW23 as a 4,500 lb powered pallet walkie with a 24V battery system, 3.9 mph maximum regular speed, 8.65-inch maximum lift height, and 28-inch overall width.

What Makes This 6HBW23 Manual Useful?

One of the strongest parts of this service documentation is its diagnostic layout. The troubleshooting chapter uses decision-tree flowcharts and symptom tables to take the technician from a reported problem toward a sequence of tests. It includes separate guidance for electrical and hydraulic troubleshooting, plus travel and lift/lower symptom tables.

The manual also provides information for the control handle display and programming, service display, power amplifier fault codes, and programmable maintenance tool. That is valuable when the pallet walkie powers up but does not behave correctly, particularly when a displayed fault needs to be connected to the machine's actual operating system.

Component-Level Service Coverage

The component-procedure index includes the battery, power cables, wiring harness, fuses, circuit breaker, control handle, power amplifier, contactors, master control relay, switches, drive unit, electromagnetic brake, drive motor, pallet forks and load wheels, and hydraulic components.

When a 6HBW23 Will Not Travel

A no-travel or poor-travel complaint can be approached through the dedicated travel troubleshooting tables, followed by the drive-unit, power-amplifier, motor, and electromagnetic-brake service sections. This is useful when the machine has power but does not move correctly, behaves inconsistently in forward or reverse, or develops a traction-related fault.

Because the manual separates symptom diagnosis from component procedures, a technician can first narrow down the fault and then move to the relevant assembly instead of dismantling the drive system immediately.

Lift and Hydraulic Troubleshooting

If the 6HBW23 travels correctly but the forks do not lift or lower as expected, the manual provides a separate lift/lower symptom table and hydraulic troubleshooting guidance. The component section then provides access to hydraulic components and the pallet-fork assembly.

This makes the documentation useful for investigating slow lift operation, abnormal lowering, or a hydraulic problem while keeping the diagnosis tied to the 6HBW23 rather than a generic pallet-truck design.

Maintenance Information Included

The manual has a dedicated Planned Maintenance section with maintenance guidelines, so it can be used for scheduled service as well as fault repair. It also includes general information, special tools, theory of operation, and an appendix containing lubrication equivalency, standard and metric torque charts, decimal conversions, standard/metric conversions, and schematics.

That combination makes the document useful beyond emergency troubleshooting, particularly for workshops responsible for keeping a 6HBW23 in regular warehouse service.

Manual Specifications

Digital Features for Technicians

• Searchable workshop information
• Decision-tree troubleshooting flowcharts
• Electrical fault-code information
• Service display and control-handle information
• Component locator and component procedures
• Electrical and hydraulic schematics
• Torque and lubrication reference charts

Who Will Get the Most Value From It?

This manual is aimed at the person actually maintaining the machine: a warehouse equipment technician, pallet-walkie mechanic, fleet maintenance professional, or service shop responsible for keeping the 6HBW23 operational. It is particularly useful when a fault requires testing rather than simple visual inspection, or when a component needs to be removed and serviced.

Model-Specific FAQs

What does “SN 22,000 and up” mean for the 6HBW23 manual?

It means the service manual is intended for 6HBW23 trucks with serial numbers 22,000 and above. The manual cover explicitly identifies this serial range.

What is the capacity of the 6HBW23?

The Toyota specifications list a 4,500 lb (2,041 kg) maximum load capacity.

Does the manual include fault-code information?

Yes. The troubleshooting section includes power amplifier fault codes, service-display information, and related diagnostic procedures.

Can I use it for a lift or hydraulic problem?

Yes. The manual includes hydraulic troubleshooting guidance, lift/lower symptom tables, and hydraulic component procedures.

Does it cover the drive motor and brake?

Yes. Dedicated procedures are provided for the drive motor, drive unit, and electromagnetic brake.

What publication number should I look for?

The documented publication is 00700-CL340-2, issued June 1, 2004.

Should I verify the serial number before using the manual?

Yes. Because this document specifically covers serial number 22,000 and up, checking the truck's identification plate is an important compatibility step.
