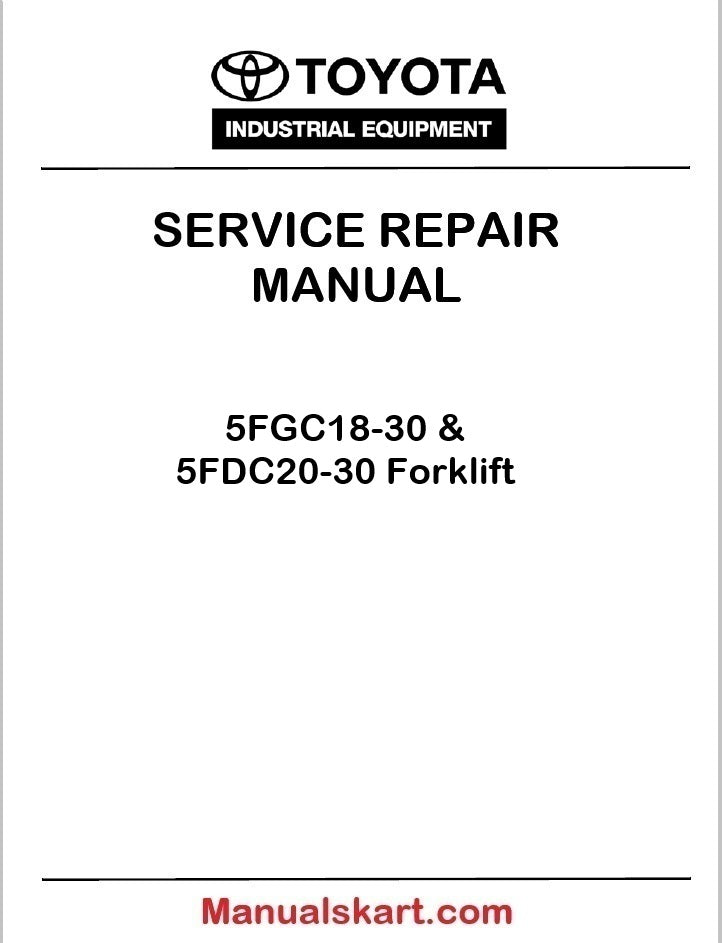

Toyota 5FGC18-30 & 5FDC20-30 Forklift PDF Repair Service Manual CE004

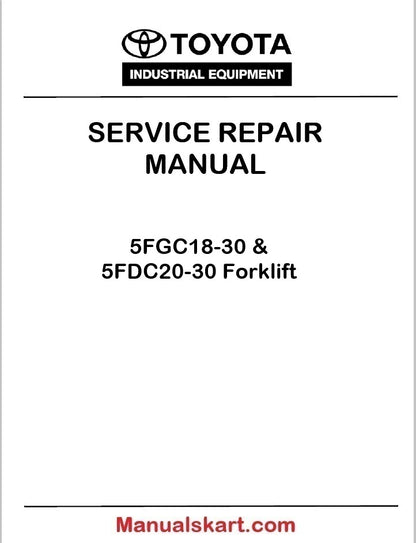

Toyota 5FGC18-30 & 5FDC20-30 Forklift PDF Repair Service Manual CE004

One repair problem can quickly turn into several hours of trial and error when the correct Toyota service information is missing. This Toyota CE004 Repair Service Manual gives owners and technicians a machine-specific reference for the 5FGC and 5FDC forklift families, with information arranged around the actual assemblies that need to be checked during repair. The documented coverage includes 5FGC18, 5FGC20, 5FGC23, 5FGC25, 5FGC28, 5FGC30, 5FDC20, 5FDC25 and 5FDC30. Toyota identifies the manual as applying to the corresponding series as of August 1986.

At a Glance: Machine Information

Item	Details
Manufacturer	Toyota
Equipment	Forklift Truck
5FGC Range	5FGC18, 5FGC20, 5FGC23, 5FGC25, 5FGC28, 5FGC30
5FDC Range	5FDC20, 5FDC25, 5FDC30
Series	5FGC18-30 & 5FDC20-30
Configuration	Gas/LPG and diesel forklift variants within the documented family
Reference Date	August 1986

Manual Specifications

Manual Detail	Specification
Publication	CE004
Document Type	Repair Service Manual
Format	PDF
Language	English
Primary Purpose	Diagnosis, inspection, adjustment, dismantling, repair and reassembly
Coverage	Powertrain, chassis, steering, brakes, material handling and hydraulics
Workshop Use	Suitable for technicians, mechanics, service departments and experienced owners

What You Get When the Forklift Is Not Behaving as It Should

Imagine the forks slowly settling after they have been raised, the mast taking longer to respond, the truck pulling differently while steering, or a drivetrain noise appearing under load. Those symptoms do not automatically identify the failed component. CE004 gives you separate technical sections so you can investigate the relevant system instead of replacing parts based on guesswork.

The manual's documented contents include general information, torque converter, propeller shaft, differential, front axle, rear axle, steering, brake, body, material handling system, mast, cylinder, oil pump, oil control valve and appendix.

Repair Areas Buyers Will Actually Use

Problem Area	Relevant Information
Drive and power transfer	Torque converter, propeller shaft and differential information
Running gear	Front and rear axle service information
Steering	Steering-system construction, operation and repair reference
Braking	Brake-system service and adjustment information
Forks and mast	Material handling, mast and cylinder procedures
Hydraulics	Oil pump and oil control valve information
General workshop work	Specifications, torque, lubrication and service references

Hydraulic Diagnosis Without Guesswork

Hydraulic faults are often described by the operator in simple terms—“the forks drop,” “tilt is weak,” or “the lift feels slow.” The manual goes further by providing technical references for the hydraulic and material-handling system, including mast, cylinders, oil pump, oil control valve and hydraulic piping. Published contents also identify checks such as natural-drop testing, natural-forward-tilt testing and oil-leak testing.

That makes the manual useful for narrowing a lifting complaint down to the appropriate assembly before opening up components unnecessarily.

From the Front Axle to the Rear Axle

CE004 is not limited to the lifting equipment. The chassis side of the manual is useful when the fault is underneath the truck rather than at the mast. The repair information moves through the front axle, rear axle, steering and brake systems, while the driveline sections cover the torque converter, propeller shaft and differential.

For a workshop, that separation matters: you can go directly to the system associated with the symptom instead of working through unrelated forklift information.

More Than Just a Repair Procedure

The general material is also useful for routine workshop decisions. Published contents identify references for vehicle models, operating tips, standard bolt and nut tightening torque, precoat bolts, high-pressure hose fitting torque, frame number, wire-rope suspension, specified lubricants, lubrication, periodic service and replacement items.

For technicians restoring an older Toyota forklift, having those references beside the component-specific procedures can make a repair job easier to organize and reduce time spent searching for scattered information.

What About Engine Repairs?

The forklift manual includes an engine section, but Toyota also directs technicians to separate engine repair references when deeper engine-level work is required. This distinction is important: CE004 is the forklift repair manual, while detailed internal engine work may require the applicable Toyota engine documentation.

Why This Manual Makes Sense for an Older 5-Series Truck

Owners of older forklifts often face a practical problem: the machine still performs useful work, but finding the correct technical information is harder than finding replacement parts. This CE004 reference is valuable because it identifies the specific Toyota 5FGC/5FDC family rather than presenting a generic “forklift repair manual.” It is therefore easier to match the document to a truck before starting a repair.

The manual is especially relevant to businesses keeping older equipment productive, independent forklift repair shops, field mechanics and service departments that need a searchable digital reference at the point of repair.

Digital PDF Advantages

• Searchable: quickly locate a component, system or service topic.
• Zoomable: enlarge diagrams and detailed technical illustrations.
• Printable: keep useful pages available in the workshop.
• Portable: use the manual on a computer or compatible mobile device.
• Model-focused: information is tied to the covered Toyota forklift family.

Before You Order: Check Your Model

The filename supplied for this product uses the shorthand 5FGC8-30, but the published CE004 documentation identifies the 5FGC portion as 5FGC18, 5FGC20, 5FGC23, 5FGC25, 5FGC28 and 5FGC30. The 5FDC portion is documented as 5FDC20, 5FDC25 and 5FDC30. Checking the model plate on your forklift against these designations is the safest way to confirm the match before purchasing.

Frequently Asked Questions

Will CE004 fit my Toyota 5FGC25?

Yes. 5FGC25 is one of the documented 5FGC models included in this manual family.

Does the manual cover the 5FGC23?

Yes. The published model coverage specifically lists 5FGC23 alongside the other 5FGC models.

Which diesel models are covered?

The documented 5FDC coverage includes 5FDC20, 5FDC25 and 5FDC30.

Can I use this manual for a mast that is lifting slowly?

Yes. The manual includes material-handling, mast, cylinder, oil-pump and oil-control-valve sections, along with hydraulic testing information relevant to lifting-system diagnosis.

Does CE004 include drivetrain repairs?

Yes. The documented sections cover the torque converter, propeller shaft and differential, in addition to the axles.

Is this manual useful for steering and brake problems?

Yes. Steering and brake are separate sections within the repair-manual structure, allowing those systems to be addressed independently from the drivetrain or hydraulic equipment.

What date does the manual represent?

Toyota's foreword states that the manual deals with the covered models as of August 1986. Toyota also cautions that later design and specification changes can result in differences between the manual and an actual vehicle.

Is CE004 an operator's manual?

No. It is a technical repair and service manual intended for workshop-level inspection, diagnosis, adjustment, dismantling, repair and reassembly.
