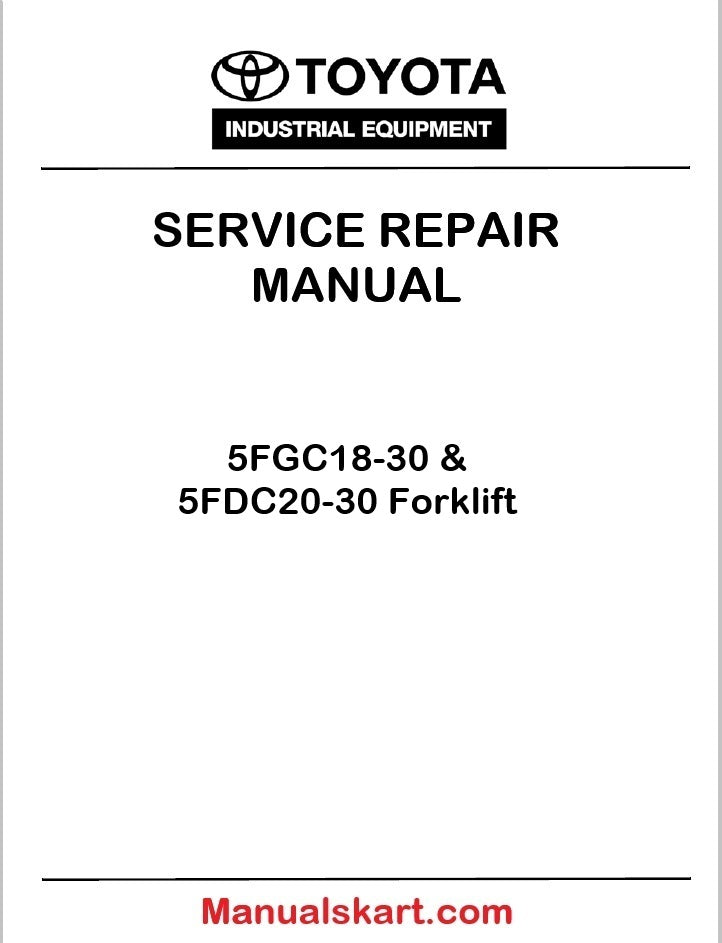

Toyota 5FGC18-30 & 5FDC20-30 Forklift PDF Repair Service Manual

Toyota 5FGC8-30 & 5FDC20-30 Gasoline & Diesel Forklift PDF Repair Service Manual

When an older Toyota forklift starts showing a fault, the useful question is not simply “what part should I replace?” It is which system should I check first? The Toyota 5FGC8-30 5FDC20-30 PDF Repair Service Manual gives technicians a structured reference for answering that question and working through the machine in a more informed way.

This manual is intended for the 5FGC8-30 and 5FDC20-30 forklift range and brings together service information for the powertrain, chassis, steering, braking, mast, and hydraulic equipment. The verified manual documentation identifies this family as Toyota 5FGC/5FDC18-30 service coverage and notes that the information represents the machines as of August 1986, with later design or specification changes requiring careful machine identification before service.

Built Around Real Workshop Problems

A forklift can develop a symptom in one area while the cause is somewhere else. A machine that starts but struggles to travel may need drivetrain inspection. A mast that does not behave correctly can involve hydraulic components rather than the mast structure itself. Steering and brake complaints can also require checks across several connected assemblies.

The value of this manual is its system-based approach. Instead of collecting isolated repair notes, a technician can use the relevant section for the job at hand and move through inspection, adjustment, component service, and reassembly in a more organized way.

Machine Information

Manufacturer	Toyota
Equipment	Internal-Combustion Forklift
Gasoline Range	5FGC8-30
Diesel Range	5FDC20-30
Power Type	Gasoline and diesel configurations
Equipment Class	Counterbalance Forklift
Service Focus	Powertrain, chassis, steering, brakes, mast and hydraulic systems

Drivetrain Information When Travel Performance Changes

If the forklift hesitates when moving, develops unusual drivetrain noise, struggles under load, or does not respond as expected, looking only at the engine may not reveal the real issue.

The repair documentation follows the mechanical power path through the torque converter, propeller shaft, differential, and axle assemblies. This lets the technician consider the complete drivetrain rather than treating every loss-of-performance complaint as an engine problem.

That approach can be especially useful when a machine still runs but its travel behavior has gradually changed through years of operation.

Service Coverage

Technical Section	What It Helps You Investigate
General	Machine identification, frame information, maintenance, lubrication, service precautions, and tightening information.
Engine	Forklift-level engine service and inspection information.
Torque Converter	Drive engagement and power-transfer concerns.
Propeller Shaft	Mechanical driveline inspection.
Differential	Differential inspection and repair work.
Front Axle	Front running-gear service.
Rear Axle	Rear axle inspection and repair.
Steering	Steering-system inspection and servicing.
Brake	Brake-system checks and repair.
Body	Body and structural service information.
Material Handling System	Lift-system diagnosis and service.
Mast	Mast adjustment, inspection, and repair.
Cylinder	Hydraulic cylinder service.
Oil Pump	Hydraulic pump inspection and maintenance.
Oil Control Valve	Hydraulic control and flow-related service.
Appendix	Additional technical information for workshop use.

Hydraulic and Mast Troubleshooting

A lifting problem does not always mean the mast itself has failed. Slow lifting, poor response, uneven mast movement, or a hydraulic leak can come from different points in the material-handling system.

The manual gives separate coverage to the material-handling system, mast, cylinders, oil pump, and oil control valve. This helps a technician inspect the lifting system as a complete working circuit before deciding whether a cylinder, valve, pump, or mast component needs attention.

For repair work, this is particularly helpful when a routine inspection turns into a component removal job and the technician needs service information beyond basic maintenance instructions.

Chassis, Steering and Braking

Years of forklift service can affect more than the engine and lifting equipment. Changes in steering feel, brake performance, axle condition, or drivetrain behavior can indicate wear in the lower chassis.

The dedicated front axle, rear axle, steering, brake, and differential sections give you a place to start when the forklift's handling has changed. Having these systems documented together also helps when more than one related problem is found during inspection.

Gasoline and Diesel Configurations

The supplied model range combines gasoline and diesel forklift configurations. That means the engine-related information must be selected according to the actual machine rather than assumed from the model family alone.

This is important when working on an older truck because the same chassis family can contain different powertrain arrangements. Before using engine-specific information, confirm the machine identification and installed configuration on the forklift.

Service Information for Older Forklifts

The general section contains practical details that are easy to overlook until a repair is already underway. These include frame-number information, lubrication guidance, periodic maintenance, component weights, tightening torque, high-pressure hose fitting torque, wire-rope suspension information, and service precautions.

The manual also advises technicians to determine the actual defect before starting major disassembly. That is a useful workshop principle on an older forklift: confirm the cause first, then remove the assembly that actually needs repair rather than dismantling a major component on assumption.

Production and Compatibility Note

The documentation identifies the covered 5FGC/5FDC series as of August 1986. Toyota also notes that the description in the manual may differ from an actual truck when later design or specification changes have been made.

For that reason, check the model number, frame number, machine configuration, and component arrangement before applying a repair procedure. This is particularly important for older equipment that may have received replacement components during its working life.

Toyota 5FGC8-30 / 5FDC20-30 Technical Details

Machine Family	5FGC8-30 / 5FDC20-30
Equipment Type	Counterbalance Forklift
Fuel Configurations	Gasoline / Diesel
Capacity Group	Model-dependent within the supplied range
Transmission System	Torque-converter drive configuration
Manual Coverage	Engine, drivetrain, axles, steering, brakes, mast, cylinders and hydraulic system
Reference Period	August 1986

Manual Specifications

Manual Type	Repair / Service / Workshop Manual
Format	PDF
Language	English
Model Coverage	5FGC8-30 / 5FDC20-30
Publication Reference	CE004 service documentation
Core Sections	General, Engine, Torque Converter, Propeller Shaft, Differential, Front Axle, Rear Axle, Steering, Brake, Body, Material Handling System, Mast, Cylinder, Oil Pump, Oil Control Valve and Appendix
Standalone Page Count	Not reliably published for this exact PDF edition
Standalone PDF Size	Not reliably published for this exact PDF edition

Convenient Digital Reference

A PDF manual is particularly useful when the forklift is being serviced away from a traditional document library. You can keep the technical reference on a workshop computer or compatible tablet and open the relevant system as the job progresses.

• Search for a component or service topic.
• Zoom into diagrams and technical illustrations.
• Print selected pages for work beside the forklift.
• Keep the manual available for future maintenance jobs.
• Use the same reference while moving from diagnosis into repair and reassembly.

Suitable for Workshop and Fleet Maintenance

This documentation is useful for Toyota forklift mechanics, service technicians, fleet maintenance departments, independent repair shops, industrial equipment workshops, and experienced owners working with the supplied 5FGC8-30 and 5FDC20-30 models.

It is especially valuable when an older forklift needs more than routine servicing and the technician requires system-specific information before dismantling a drivetrain, hydraulic assembly, mast, axle, steering component, or brake assembly.

Model-Specific FAQs

What Toyota forklifts does this manual cover?

The supplied documentation is for the Toyota 5FGC8-30 and 5FDC20-30 model range. The verified repair documentation identifies the corresponding 5FGC/5FDC service family.

Are the 5FGC8-30 and 5FDC20-30 gasoline and diesel forklifts?

Yes. The 5FGC designation represents the gasoline side of the supplied range, while 5FDC identifies the diesel side. The exact configuration should be confirmed from the machine identification plate.

Does this manual cover the drivetrain?

Yes. The service coverage includes the torque converter, propeller shaft, differential, and axle assemblies, making it useful for investigating travel and power-transfer problems.

Can I use this manual for a forklift that has lost pulling power?

Yes. The drivetrain sections provide a useful starting point for checking whether the problem is related to power transfer rather than assuming that the engine is the only possible cause.

Does the manual contain mast and hydraulic information?

Yes. The documentation includes the material-handling system, mast, cylinders, oil pump, and oil control valve.

Can it help with a hydraulic lifting problem?

Yes. The hydraulic and material-handling sections are relevant when investigating slow lifting, mast movement issues, hydraulic performance changes, or component-related problems.

Does this manual cover steering and brakes?

Yes. Dedicated Steering and Brake sections are included, together with front and rear axle information.

What production period does the documentation represent?

The verified manual identifies the covered machine family as of August 1986. Later design or specification changes may differ from the original documentation.

Why should I check the frame number?

The documentation covers a model family rather than one identical configuration. The frame number and machine identification help confirm that the procedure and specification match the forklift being serviced.

Does the manual include maintenance information?

Yes. The general section includes information relating to lubrication, periodic maintenance, tightening torque, component weights, frame identification, and other workshop practices.

Is the listed 46.8 MB file size the size of the repair manual?

No. The 46.8 MB figure available in one reference relates to a combined repair-manual and parts-catalog package. It should not be presented as the standalone PDF size of the repair manual.

Should I use this manual for detailed internal engine rebuilding?

The forklift service manual provides machine-level engine service information, but detailed internal engine work may require the separate engine documentation applicable to the engine installed in the forklift.

Is this the same publication as the Toyota 5FGC0-5 manual?

No. The supplied 5FGC8-30 5FDC20-30 documentation represents a different model group. The forklift model should always be matched to the correct service publication before repair work begins.

Final Product Summary

The Toyota 5FGC8-30 5FDC20-30 PDF Repair Service Manual is a practical technical reference for the supplied gasoline and diesel forklift range. Its coverage follows the machine through the drivetrain, axles, steering, brakes, mast, cylinders, oil pump, and hydraulic control system.

For technicians dealing with an older Toyota forklift, the real advantage is having the relevant service information organized around the machine itself. That makes it easier to investigate a fault, confirm the affected system, and move into repair without relying on generic instructions from another forklift family.
