New Holland VX7090 Grape Harvester Pdf Repair Service Manual (p. Nb. 84404824B)

New Holland VX7090 Grape Harvester PDF Repair Service Manual (Publication No. 84404824B)

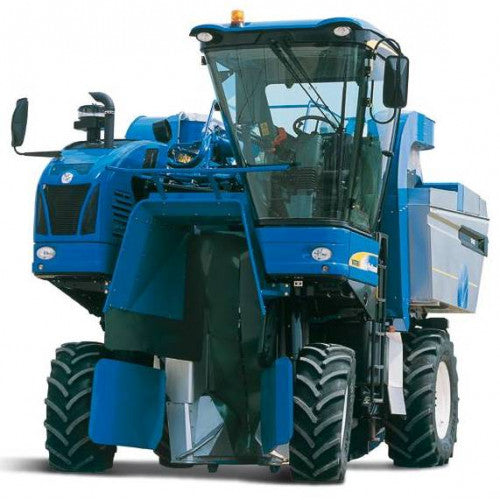

Premium wine production begins with careful harvesting, and the New Holland VX7090 Grape Harvester was engineered to protect fruit quality while delivering outstanding productivity in modern vineyards. Built on the proven BRAUD harvesting platform, the VX7090 combines intelligent hydrostatic propulsion, a self-levelling chassis and the renowned SDC (Shaking Dynamic Control) harvesting system to harvest grapes efficiently while minimizing vine stress and fruit damage. Whether working in narrow vineyard rows or uneven terrain, the VX7090 provides smooth crop handling with consistent harvesting performance.

Daily harvesting exposes the shaking system, hydraulic circuits, hydrostatic transmission, cleaning fans, conveyors, hoppers and steering components to continuous operating loads. This OEM Factory Repair Service Manual (Publication No. 84404824B) supplies dealership-level repair procedures covering inspection, diagnostics, calibration, testing and complete machine overhaul, helping technicians restore original harvesting efficiency while reducing costly vineyard downtime. The manual also supports VX7090 machines introduced from Series 007 onward.

Built for High-Quality Vineyard Harvesting

The VX7090 is designed to harvest grapes gently while maintaining maximum productivity. Its BRAUD SDC shaking system independently controls each shaker rod to improve berry removal without damaging vines. The patented NORIA basket system transports harvested grapes with minimal crushing, while integrated cleaning fans remove leaves and unwanted material before fruit reaches the hopper. Hydrostatic propulsion and four-wheel steering provide excellent maneuverability in vineyards with varying row widths and changing ground conditions.

Machine Information

Factory Workshop Coverage

Professional Workshop Procedures

• Calibrate the SDC shaking mechanism for different grape varieties.
• Inspect NORIA bucket assemblies for wear and correct alignment.
• Diagnose hydrostatic drive performance using OEM pressure tests.
• Service hydraulic pumps, valves and steering cylinders.
• Adjust cleaning fan airflow for improved crop cleanliness.
• Repair grape conveyors and product feeding components.
• Inspect hopper lifting and unloading mechanisms.
• Use OEM electrical wiring diagrams for fault diagnosis.
• Apply factory torque specifications during component installation.
• Use exploded assembly drawings for accurate rebuilding.
• Complete post-repair operational checks before harvest.
• Verify harvesting quality and machine performance under field conditions.

Manual Specifications

Frequently Asked Questions

Which machine does this repair manual cover?

This OEM workshop manual covers the New Holland VX7090 Grape Harvester (Publication No. 84404824B).

Does the manual include the BRAUD harvesting system?

Yes. It covers the SDC shaking system, NORIA bucket conveyors, product feeding components and crop cleaning systems.

Are hydrostatic transmission and hydraulic repairs included?

Yes. Complete repair procedures are provided for the hydrostatic transmission, hydraulic pumps, valves, steering circuits and pressure testing.

Does the manual include electrical wiring diagrams?

Yes. Factory wiring diagrams, electrical schematics, controller diagnostics and troubleshooting procedures are included.

Who should use this repair manual?

This manual is intended for New Holland dealership technicians, vineyard equipment service centers, commercial grape growers and experienced agricultural mechanics servicing the VX7090 Grape Harvester.
