New Holland TL80A, TL90A, TL100A Tractor Pdf Repair Service Manual (p. Nb. 87580875)

New Holland TL80A, TL90A & TL100A Tractor PDF Repair Service Manual (Publication No. 87580875)

On many livestock and mixed farms, one tractor quietly becomes the hardest-working machine in the fleet. It starts the morning loading silage, spends the afternoon pulling a mower-conditioner across uneven ground, and finishes the day transporting heavy feed wagons back to the yard. The New Holland TL80A, TL90A and TL100A were engineered precisely for this type of demanding, multi-purpose workload. Their balanced chassis, responsive shuttle transmission and dependable hydraulic performance make them equally comfortable with front loader operations, hay production and field cultivation. After years of daily service, however, components such as the shuttle transmission, hydraulic lift system and front axle inevitably require professional attention.

This OEM Factory Repair Service Manual (Publication No. 87580875) provides dealership-level repair procedures that allow technicians to diagnose faults methodically, rebuild assemblies correctly and return the tractor to factory operating condition. The manual is organized into dedicated workshop sections covering the engine, clutch, transmission, driveline, axles, PTO, brakes, hydraulics, steering, electrical systems and cab components.

Unlike a maintenance booklet that simply lists service intervals, this workshop manual explains how each system interacts under real agricultural workloads. Hydraulic pressure tests, transmission inspections, electrical diagnostics and mechanical measurements are presented in logical repair sequences, allowing mechanics to identify the actual cause of a failure before replacing expensive parts.

Built Around Loader Performance and Everyday Farm Work

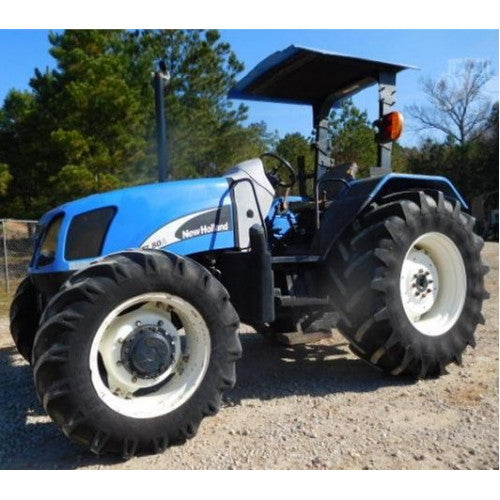

The TL-A Series was developed for farms requiring a reliable utility tractor that could transition effortlessly between livestock duties and field operations. Producing approximately 80–100 engine horsepower, these tractors combine a compact wheelbase with excellent weight distribution, making them stable when carrying heavy front-loader loads while remaining agile inside barns and narrow farm lanes. Available in both two-wheel drive and mechanical front-wheel-drive configurations, the TL-A Series also features a Category II three-point hitch, independent PTO and an open-centre hydraulic system capable of powering loaders, bale handlers, mowers, tedders, sprayers and transport equipment throughout the farming season.

Machine Information

A Manual Written for Real Workshop Diagnostics

Utility tractors rarely fail while performing a single repetitive task. Instead, they experience constant changes between transport, PTO work and hydraulic loader operation. This manual reflects those real-world conditions by teaching technicians how to isolate faults rather than simply replace components.

• Diagnose forward/reverse shuttle hesitation before removing the transmission.
• Test hydraulic flow when the loader lifts slowly despite normal engine performance.
• Inspect MFWD hub assemblies after prolonged operation with heavy round bales.
• Repair independent PTO engagement used for balers, feed mixers and forage equipment.
• Measure clutch wear before tractor splitting to avoid unnecessary component replacement.
• Trace steering drift caused by hydraulic steering circuit wear rather than mechanical linkage.
• Use OEM wiring diagrams to locate charging, lighting and starting faults efficiently.
• Inspect rear differential gears following repeated heavy trailer towing.
• Restore three-point hitch lifting accuracy through hydraulic valve testing and adjustment.
• Verify factory tolerances, torque values and calibration settings before final assembly.

Factory Workshop Coverage

Manual Specifications

Frequently Asked Questions

Does this manual explain loader-related hydraulic faults?

Yes. It includes pressure-testing procedures, hydraulic pump inspection, remote valve diagnosis and lift circuit troubleshooting specifically useful for tractors performing intensive front-loader work.

Can I rebuild the shuttle transmission using this manual?

Absolutely. The transmission section covers inspection, disassembly, measurement, assembly and adjustment procedures for the shuttle transmission and associated driveline components.

Are electrical wiring diagrams included for fault tracing?

Yes. Complete OEM electrical schematics are provided for charging, starting, lighting, instrumentation and other tractor electrical circuits, helping technicians diagnose faults systematically.

Will this manual help with three-point hitch lifting problems?

Yes. Dedicated hydraulic chapters explain how to check system pressure, inspect lift control valves and diagnose hitch performance before replacing expensive hydraulic components.

Who is Publication No. 87580875 intended for?

This factory workshop manual is ideal for dealership technicians, agricultural equipment repair shops, dairy and livestock farm maintenance teams, municipal workshops and experienced owners servicing TL80A, TL90A or TL100A tractors according to OEM repair standards.
