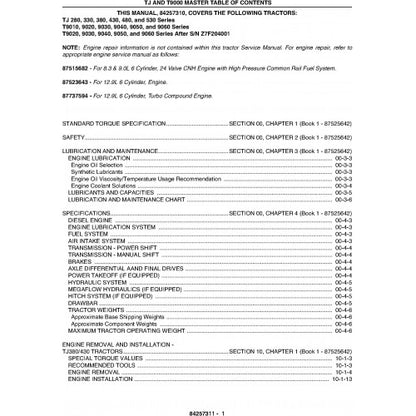

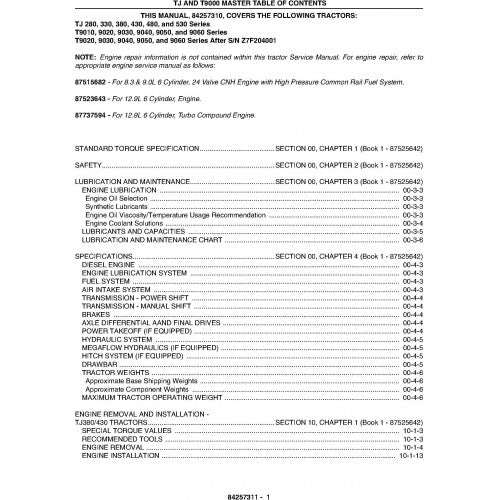

New Holland TJ280, TJ330, TJ380, TJ430, TJ480, TJ530, T9010, T9020, T9030, T9040, T9050 & T9060 Tractors PDF Repair Service Manual (Publication 884257310)
Built for demanding primary tillage, land preparation and large-scale field operations, the New Holland TJ and T9000 articulated tractor range combines high-horsepower performance with heavy-duty driveline components and advanced hydraulic systems. When these machines require transmission repairs, articulation servicing, hydraulic diagnostics or electronic troubleshooting, the OEM Factory Repair Service Manual (Publication 884257310) provides the same technical procedures used by New Holland dealership technicians. Designed for workshop use, this manual delivers accurate repair instructions that help reduce downtime and restore factory performance.
Where This Manual Helps Most
Whether you're rebuilding a powershift transmission after thousands of field hours, diagnosing steering articulation issues, repairing hydraulic remotes, replacing differential components or troubleshooting electrical faults, this manual guides every repair with factory inspection limits, adjustment values and diagnostic procedures instead of relying on guesswork.
Factory Manual Technical Information
| Manual Feature | Details |
|---|---|
| Electrical Wiring Diagrams | Included |
| Publication Number | 884257310 |
| Format | |
| Hydraulic Schematics | Included |
| Language | English |
| OEM Manual Type | Factory Repair Service Manual |
| Searchable Document | Yes |
| Torque Specifications | Included |
| Bookmarks | Yes |
| Diagnostic Procedures | Included |
| Special Tool References | Included |
| Assembly & Inspection Procedures | Included |
| Printable | Yes |
Machine Overview
| Machine Information | Specification |
|---|---|
| Applications | Heavy Tillage, Seeding, Deep Ripping and Large Acreage Farming |
| Drive Configuration | Four-Wheel Drive Articulated Tractor |
| Models Covered | TJ280, TJ330, TJ380, TJ430, TJ480, TJ530, T9010, T9020, T9030, T9040, T9050 & T9060 |
| Transmission | Heavy-Duty Full Powershift |
| Manufacturer | New Holland Agriculture |
| Hydraulic System | High-Capacity Closed-Center Load-Sensing System |
| Machine Type | High Horsepower Articulated Tractor |
| Series | TJ & T9000 Tractor Series |
| Power Range | Approximately 280–530 Engine HP (Model Dependent) |
| Steering | Hydraulic Articulated Steering |
| PTO Availability | Configuration Dependent |
| Primary Market | Commercial Agriculture |
Major Workshop Procedures Included
- Hydraulic pump performance testing and pressure diagnostics.
- Articulation joint inspection and center pivot servicing.
- Electrical troubleshooting using OEM wiring diagrams.
- Front and rear differential overhaul procedures.
- Powershift transmission disassembly, inspection and reassembly.
- Brake system inspection and hydraulic brake repairs.
- Final drive servicing and axle bearing replacement.
- Steering circuit diagnosis and articulated steering repairs.
- Electronic controller calibration and sensor testing.
- Hydraulic remote valve repair and flow testing.
- Cooling, fuel and lubrication system servicing.
- Complete engine removal, overhaul and installation.
Workshop Manual Organization
| Technical Section | Coverage |
|---|---|
| Electrical Systems | Charging, Starting, Sensors and Wiring |
| Hydraulic Systems | Pumps, Valves, Remotes and Steering Circuits |
| Engine | Complete Engine Service Procedures |
| Power Train | Powershift Transmission, Transfer Case and Driveline |
| Axles | Final Drives, Differentials and Wheel Ends |
| Operator Station | Cab Components and Controls |
| Steering & Articulation | Center Pivot and Steering System |
Why Professional Workshops Prefer This Manual
Instead of offering basic maintenance information, Publication 884257310 focuses on complete repair procedures with factory measurements, wear limits, diagnostic flowcharts and assembly specifications. Technicians can accurately identify hydraulic failures, isolate transmission problems, inspect articulation components and verify electrical circuits before replacing expensive parts, making it an essential workshop reference for high-horsepower New Holland articulated tractors.
Frequently Asked Questions
Which tractor models are included in this manual?
This manual covers the TJ280, TJ330, TJ380, TJ430, TJ480, TJ530, T9010, T9020, T9030, T9040, T9050 and T9060 articulated tractors.
Does the manual include articulated steering repairs?
Yes. It covers steering components, articulation joints, hydraulic steering circuits and related diagnostic procedures.
Are OEM electrical wiring diagrams provided?
Yes. Complete factory wiring diagrams and electrical troubleshooting procedures are included.
Can I rebuild the powershift transmission using this manual?
Yes. The manual contains complete transmission disassembly, inspection, assembly and adjustment procedures.
Is Publication 884257310 an official OEM repair manual?
Yes. Publication 884257310 is the official OEM Factory Repair Service Manual developed specifically for the covered New Holland TJ and T9000 tractor models.
