New Holland TD60, TD70, TD80, TD90, TD95 Straddle Mount Model Tractor Pdf Repair Service Manual

New Holland TD60, TD70, TD80, TD90 & TD95 Straddle Mount Tractor PDF Repair Service Manual

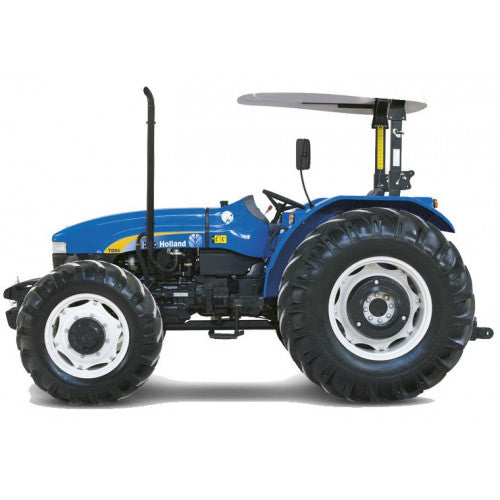

Built for demanding vineyard and orchard operations, the New Holland TD60, TD70, TD80, TD90 and TD95 Straddle Mount tractors combine a narrow-profile design with dependable traction, responsive hydraulics and excellent maneuverability. This OEM Factory Repair Service Manual provides the complete workshop information required to diagnose, repair and overhaul every major mechanical and electrical system using factory-approved service procedures.

Designed for professional workshops as well as experienced owners, this manual follows the same format used by New Holland dealership technicians. It contains detailed service procedures, exploded component illustrations, hydraulic schematics, electrical wiring diagrams, troubleshooting charts and technical specifications to help complete repairs accurately and efficiently.

Machine Information

Workshop Repair Coverage

• Complete engine teardown, inspection and overhaul procedures
• Clutch adjustment, inspection and replacement
• Gearbox diagnosis, servicing and overhaul
• Transmission of motion and driveline repairs
• Front mechanical transmission servicing
• Rear transmission and differential repairs
• PTO inspection, adjustment and rebuilding
• Hydraulic pump, valves and lift system servicing
• Brake system diagnostics and repair procedures
• Hydrostatic steering troubleshooting and repairs
• Electrical system diagnosis using factory wiring diagrams
• Platform, body panels and structural component servicing
• Special service tool references
• Factory torque values and adjustment specifications
• Exploded assembly illustrations for accurate reassembly

Manual Technical Specifications

OEM Workshop Documentation

The manual is organized into dedicated service sections covering the engine, clutch, gearbox, transmission, front and rear drive systems, PTO, brakes, hydraulic systems, steering, electrical system and platform/bodywork. Clear illustrations and logical repair sequences make it easier to locate faults, perform accurate repairs and restore the tractor to original factory specifications.

Frequently Asked Questions

Which tractor models are included?

This manual covers the New Holland TD60, TD70, TD80, TD90 and TD95 Straddle Mount tractors.

Are complete wiring diagrams included?

Yes. Factory electrical wiring diagrams and troubleshooting procedures are included throughout the manual.

Does the manual cover hydraulic system repairs?

Yes. It contains hydraulic schematics, testing procedures and complete repair instructions for hydraulic components.

Is gearbox and transmission servicing explained?

Yes. Detailed repair procedures are provided for the gearbox, transmission, driveline, front mechanical transmission and rear transmission assemblies.

Is this an OEM factory workshop manual?

Yes. Publication 84285908R0 is an OEM factory repair service manual prepared for New Holland workshop technicians.

Who is this manual intended for?

It is suitable for dealership technicians, agricultural equipment mechanics, independent repair workshops and experienced owners who require professional workshop procedures.
