New Holland TC31DA, TC34DA Tractors Pdf Repair Service Manual (p. Nb. 87531021)

New Holland TC31DA & TC34DA Tractor PDF Repair Service Manual (Publication No. 87531021)

Compact utility tractors often accumulate more engine hours than larger field tractors because they rarely have an "off season." A New Holland TC31DA or TC34DA might spend one day maintaining horse arenas, the next clearing snow, and the following weekend powering a rotary cutter or front loader. This constant change of tasks places unique demands on the drivetrain, hydrostatic transmission, front axle and hydraulic system. When performance begins to decline, guessing at the cause usually leads to unnecessary parts replacement.

The OEM Factory Repair Service Manual (Publication No. 87531021) gives technicians the same structured repair procedures used in New Holland dealership workshops, allowing every system to be diagnosed, measured and rebuilt according to factory specifications. The manual includes dedicated repair sections covering the engine, gear and hydrostatic transmissions, front-wheel drive axle, PTO, hydraulics, steering, brakes, electrical systems and operator platform.

Instead of focusing on routine servicing, this manual explains how to troubleshoot complex workshop problems that appear after years of loader work, landscaping projects and property maintenance. Each repair procedure follows an OEM sequence that minimizes downtime while protecting expensive components from incorrect disassembly.

Designed for Property Owners, Landscapers and Small Farms

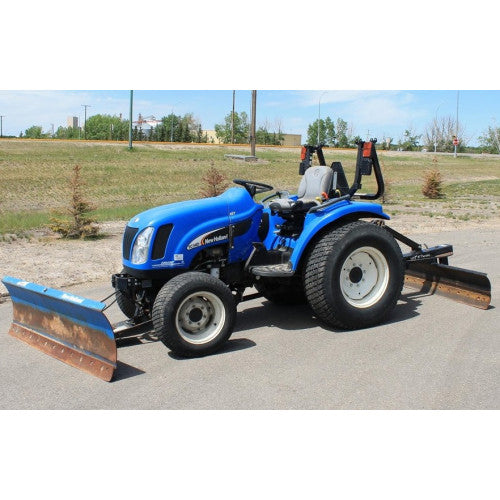

The TC31DA and TC34DA were built for operators who needed a compact tractor capable of handling professional workloads without sacrificing maneuverability. Producing approximately 31–34 engine horsepower, these tractors are commonly equipped with hydrostatic or gear-drive transmissions, Category I three-point hitch systems and independent rear PTOs. Their compact wheelbase makes them ideal for working around barns, vineyards, greenhouses and residential properties, while four-wheel-drive configurations provide dependable traction during loader work, grading and mowing on uneven terrain.

Machine Information

Common Workshop Repairs This Manual Helps Solve

Compact tractors experience hundreds of direction changes, frequent PTO engagement and constant hydraulic cycling. Those operating conditions create failure patterns that differ significantly from larger agricultural tractors. This manual focuses on those real workshop situations.

• Diagnose hydrostatic transmission performance loss before replacing expensive drive components.
• Inspect mechanical front-wheel-drive axle assemblies after extended front loader operation.
• Repair hydraulic lift circuits when rear implements raise slowly under load.
• Troubleshoot PTO engagement problems affecting finish mowers, tillers and rotary cutters.
• Split the tractor safely for clutch replacement on gear-drive models.
• Trace steering problems caused by hydraulic flow restrictions instead of steering linkage wear.
• Restore charging and starting performance using complete OEM electrical wiring diagrams.
• Inspect rear differential components after repeated heavy towing or grading work.
• Measure hydraulic pump output before replacing valves or cylinders.
• Follow factory adjustment procedures during final assembly to maintain OEM operating tolerances.

Factory Workshop Coverage

Manual Specifications

Frequently Asked Questions

Does this manual include both gear-drive and hydrostatic transmission repairs?

Yes. Publication No. 87531021 contains dedicated workshop sections for both gear transmission and hydrostatic transmission systems, allowing technicians to repair the correct drivetrain configuration.

Can I use this manual when repairing a front-end loader hydraulic issue?

Yes. The hydraulic chapters explain pressure testing, pump inspection, lift circuit diagnostics and valve troubleshooting, making it valuable for tractors equipped with front loaders.

Are four-wheel-drive axle repairs covered?

Absolutely. The manual includes inspection and overhaul procedures for the MFWD front axle, steering knuckles, hubs and differential components commonly serviced on compact utility tractors.

Does it contain complete electrical wiring diagrams?

Yes. Factory wiring schematics and electrical troubleshooting procedures are included for charging, starting, lighting and instrument circuits to simplify fault diagnosis.

Who will benefit most from this repair manual?

This manual is ideal for compact tractor repair workshops, landscape equipment service centers, municipal maintenance departments, small farm owners and experienced mechanics responsible for maintaining TC31DA and TC34DA tractors to OEM repair standards.
