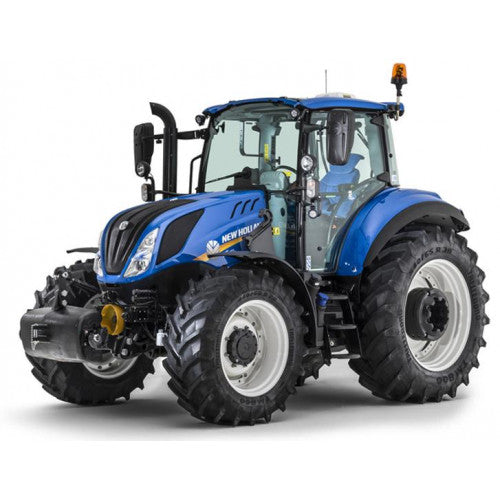

New Holland T5.100 Electro Command, T5.110 Electro Command, T5.120 Electro Command Tractor Pdf Repair Service Manual 2017

New Holland T5.100, T5.110 & T5.120 Electro Command Tractor PDF Repair Service Manual (2017)

Not every tractor in the 100–120 HP class is expected to handle loader work in the morning, power PTO-driven equipment throughout the afternoon, and still maintain smooth road transport between fields. The New Holland T5 Electro Command series was engineered for exactly that type of mixed-duty farming. Combining a responsive 16×16 Electro Command™ semi-powershift transmission with high hydraulic performance and compact dimensions, these tractors are widely used on livestock farms, mixed agriculture and municipal operations where versatility is more valuable than raw horsepower. This OEM repair service manual explains the factory procedures used to inspect, diagnose and rebuild every major system without relying on guesswork.

Machine Information

Why Professional Workshops Use This Manual

The Electro Command transmission integrates electronic clutch control, powershift clutch packs and hydraulic modulation that require precise testing procedures rather than trial-and-error repairs. This factory manual documents the inspection sequence, hydraulic pressure checks, calibration procedures, transmission disassembly, electrical diagnostics and component measurements used by dealership technicians. Instead of replacing expensive assemblies unnecessarily, technicians can isolate faults at component level using the manufacturer's recommended workflow.

Major Workshop Procedures Included

• Electro Command™ semi-powershift transmission overhaul and clutch pack inspection
• Electronic transmission calibration and hydraulic pressure testing
• Engine removal, overhaul and timing procedures
• Front axle differential and MFWD repair procedures
• Rear axle, planetary reduction and differential servicing
• Hydraulic pump performance testing and flow diagnostics
• Remote valve and hitch hydraulic troubleshooting
• Rear lift linkage adjustment and calibration
• PTO clutch inspection, brake adjustment and rebuild procedures
• Hydrostatic steering diagnosis and steering cylinder repairs
• Brake hydraulic circuit inspection and servicing
• Electrical fault diagnosis using OEM wiring diagrams
• Cab electrical systems, climate control and operator controls
• Loader-ready hydraulic system servicing
• Factory torque values, service tools and exploded component illustrations

Manual Technical Specifications

Frequently Asked Questions

Does this manual explain Electro Command transmission calibration?

Yes. The manual contains factory procedures for servicing, testing and calibrating the 16×16 Electro Command semi-powershift transmission.

Are loader hydraulic systems covered?

Yes. Hydraulic pump testing, remote valves, loader-ready hydraulic circuits and hitch hydraulics are included.

Will I find complete electrical troubleshooting information?

Yes. The manual includes OEM wiring diagrams, connector information and diagnostic procedures for the tractor's electrical systems.

Does the manual include front axle and 4WD repairs?

Yes. Detailed repair instructions cover the MFWD system, front axle assemblies, differential components and driveline repairs.

Is this the same manual used by New Holland dealerships?

Yes. Publication 48038307 is the official OEM factory repair service manual prepared for professional workshop use.

Who benefits most from this repair manual?

This manual is ideal for dealership technicians, independent agricultural equipment workshops, fleet maintenance teams and experienced tractor owners performing advanced repairs.
