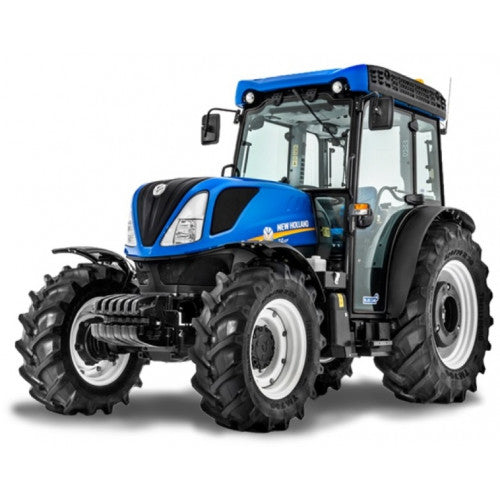

Not every specialty tractor is engineered around the same priorities. The New Holland T4 F and T4 LP Series were developed for growers who spend long days working between closely spaced orchard rows, vineyards, olive groves and other permanent crops where tractor width, turning ability and hydraulic precision are just as important as engine performance. Compared with conventional utility tractors, these machines feature a narrower chassis, low-profile configurations, compact front axle geometry and balanced weight distribution to maintain stability on uneven terrain while operating sprayers, shredders, side mowers and hydraulic implements.

Because of this specialized design, servicing these tractors requires more than general mechanical knowledge. Hydraulic routing, MFWD components, steering geometry and PTO assemblies are packaged within a compact frame, leaving little room for error during repairs. The OEM Factory Repair Service Manual (Publication No. 51523358) provides dealership-level procedures for tractors beginning with PIN ZHLH00094 and above. Every repair operation follows factory specifications, helping technicians inspect, diagnose, dismantle, rebuild and verify components exactly as intended by New Holland engineers.

Technical Profile of the T4 F & LP Platform

Workshop Operations Explained Inside This Manual

• Hydraulic pressure testing and pump performance diagnosis
• MFWD axle inspection, differential and reduction hub servicing
• Transmission geartrain overhaul and bearing inspection
• PTO clutch pack dismantling and assembly procedures
• Rear hitch linkage adjustments and implement coupling repairs
• Hydraulic remote valve servicing and spool inspection
• Power steering circuit troubleshooting
• Engine disassembly, measurements and reassembly
• Cooling system leak diagnosis and component replacement
• Fuel system inspection and service procedures
• Brake system rebuilding and adjustment
• Electrical circuit diagnosis with OEM wiring diagrams
• Cab climate control system servicing
• Platform, hood, guards and body panel removal procedures
• Factory torque values, wear limits and special tool references

OEM Manual Technical Specifications

Why Experienced Mechanics Depend on This Edition

Repairs on specialty tractors often involve assemblies that are unique to orchard applications rather than standard agricultural machines. This factory manual combines exploded component illustrations, inspection dimensions, adjustment values, hydraulic circuit diagrams and troubleshooting sequences into a single workshop reference. Whether replacing a PTO clutch assembly, rebuilding a front drive axle, tracing an electrical fault or overhauling the hydraulic system, technicians can follow the same repair workflow used by New Holland service departments.

Frequently Asked Questions

Does this manual include both F and LP tractor variants?

Yes. It covers the T4.80F, T4.90F, T4.100F, T4.110F together with the T4.80LP, T4.90LP, T4.100LP and T4.110LP models.

Are front axle and MFWD repairs documented?

Yes. The manual explains front axle disassembly, differential service, reduction hubs and four-wheel-drive components.

Is this suitable for diagnosing hydraulic performance issues?

Yes. Hydraulic pressure testing, valve servicing, pump inspection and hydraulic schematics are included.

Does the manual contain complete electrical wiring diagrams?

Yes. OEM wiring diagrams, electrical troubleshooting procedures and connector information are provided for workshop diagnostics.

Which serial numbers are supported?

This edition applies to New Holland T4 F and T4 LP tractors with PIN ZHLH00094 and above.
