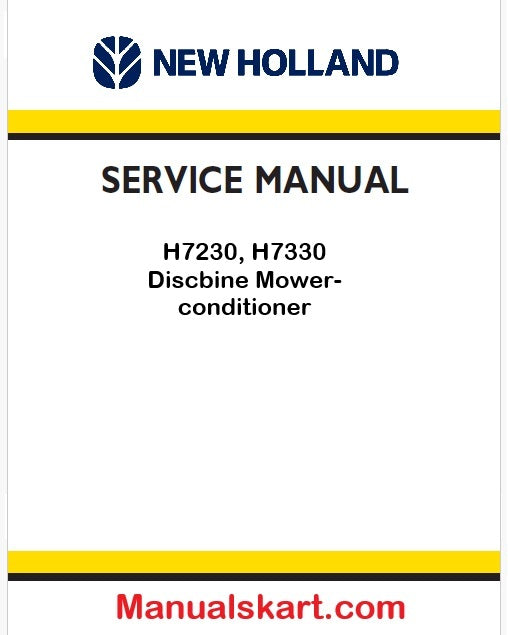

New Holland H7230, H7330 Discbine Mower-conditioner Pdf Repair Service Manual (p. Nb. 48068916)

Factory Repair & Service Manual for New Holland H7230 & H7330 Discbine Mower-Conditioners

Disc mower-conditioners operate at high cutting speeds and are subjected to continuous shock loads, driveline stress, and crop impact during harvesting operations. Improper servicing or incorrect adjustments can result in uneven cutting, driveline damage, and premature component failure. The New Holland H7230 and H7330 Discbine Mower-Conditioner PDF Repair Service Manual (P/N: 48068916) provides official factory procedures required to diagnose mechanical issues, service cutting and conditioning systems, and restore these machines to correct operating condition.

This original New Holland service repair manual is written for agricultural technicians, forage equipment service centers, and farm maintenance teams responsible for maintaining discbine mower-conditioners used in hay and forage harvesting. Accurate factory documentation is essential due to the combination of high-speed cutterbar systems, conditioning rolls, PTO-driven drivelines, and hydraulic folding mechanisms.

Developed for Forage Harvesting Equipment Service Professionals

Prepared from genuine New Holland factory service documentation, this manual reflects real repair and maintenance practices used in authorized agricultural workshops. It supports hands-on service tasks such as cutterbar inspection, disc module servicing, conditioner roll adjustment, driveline alignment, and hydraulic system diagnostics for H7230 and H7330 discbine models.

Who This Manual Is Intended For

• Agricultural equipment service technicians
• Hay and forage equipment maintenance teams
• Independent agricultural machinery repair workshops
• Professional operators performing advanced mechanical servicing

Discbine Cutting, Conditioning & Driveline Coverage

The New Holland H7230 and H7330 discbine mower-conditioners feature high-capacity cutterbars equipped with multiple disc modules and integrated conditioning systems designed to improve crop drying efficiency. This service repair manual provides structured, step-by-step procedures for servicing cutterbar gear modules, inspecting disc hubs, replacing knives, and correcting cutting height and angle settings.

Detailed coverage is also provided for conditioning roll systems, including roll timing, clearance adjustment, bearing inspection, and driveline servicing to ensure consistent crop conditioning and reduced leaf loss during operation.

Systems & Factory Repair Procedures Covered

• Complete service procedures for New Holland H7230 and H7330 discbine mower-conditioners
• Cutterbar System: Disc module servicing, gear inspection, knife replacement, and lubrication
• Conditioner System: Roll alignment, clearance adjustment, bearing service, and replacement
• PTO & Driveline: Shaft inspection, universal joint servicing, clutch adjustment, and alignment
• Hydraulic System: Lift and fold circuit diagnostics, hose routing, and cylinder servicing
• Frame & Hitch: Structural inspection, tongue alignment, and transport lock adjustment
• Safety Systems: Shielding inspection, safety device checks, and operational compliance
• Torque values, lubrication charts, service intervals, and adjustment specifications

Manual Specifications

• Models Covered: New Holland H7230, H7330 Discbine Mower-Conditioners
• Part Number: 48068916
• Document Type: OEM Factory Repair Service Manual
• Application: Agricultural & Forage Harvesting Equipment
• Format: Searchable PDF (Digital Download)
• Language: English
• Page Count: 341 Pages
• File Size: Approximately 41 MB
• Illustrations: Cutterbar diagrams, driveline schematics, exploded component views
• Equipment Type: Disc Mower-Conditioner
• Device Compatibility: Windows, macOS, Android, iOS

Why This Service Repair Manual Is Essential

• Provides factory-approved repair procedures for New Holland discbine mower-conditioners
• Supports accurate servicing of cutterbar and conditioning systems
• Ensures correct driveline alignment and PTO protection adjustment
• Helps reduce downtime during peak hay and forage harvesting seasons
• Widely used by professional agricultural service technicians
• Searchable format allows fast access to technical data in workshop or field environments
• Includes detailed diagrams and specifications for precision repairs

Why Buy from Manualskart.com

Manualskart.com supplies authentic New Holland agricultural service repair manuals trusted by technicians and forage equipment operators worldwide. Each manual is delivered as a searchable PDF containing factory specifications, diagrams, and step-by-step repair procedures.

Browse the complete New Holland Agricultural Equipment Manual Collection for additional mower-conditioner and forage equipment service documentation.

Download the New Holland H7230 & H7330 discbine mower-conditioner service repair manual today and gain immediate access to official factory procedures designed for reliable forage harvesting performance.
