New Holland H7230, H7330 Discbine Mower-conditioner Pdf Repair Service Manual (p. Nb. 48068916)

New Holland H7230, H7330 Discbine Mower-Conditioner PDF Repair Service Manual (Publication No. 48068916)

When weather windows are short and forage quality determines profitability, downtime is not an option. The New Holland H7230 and H7330 Discbine® Mower-Conditioners were engineered for producers who demand high daily acreage, fast crop conditioning and dependable field performance throughout the hay season. Built around the proven MowMax™ modular cutterbar, these machines combine clean high-speed cutting with efficient crop conditioning, making them well suited for alfalfa, grass hay and mixed forage harvesting. Their center-pivot design allows operators to mow on either side of the tractor while maintaining excellent maneuverability in irregular fields and around obstacles.

Because these machines operate under heavy shock loads, servicing requires far more than routine maintenance. Cutterbar modules, conditioner rolls, PTO drivelines, hydraulic lift circuits, suspension systems and gearboxes must all be inspected and repaired according to precise factory specifications. This OEM Factory Repair Service Manual (Publication No. 48068916) provides dealership-level repair information covering complete diagnostics, disassembly, inspection, measurement, overhaul, reassembly and operational testing. Whether replacing a damaged cutterbar module, rebuilding driveline components or troubleshooting hydraulic performance, this workshop manual helps technicians restore factory operating standards while minimizing costly harvesting delays.

About the H7230 & H7330 Discbine Series

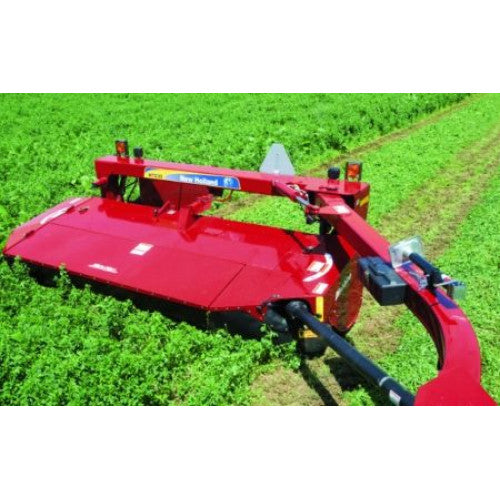

The H7230 and H7330 belong to New Holland's professional Discbine® lineup designed for medium to large forage operations. The H7230 provides an approximate 10 ft. 4 in. (3.15 m) cutting width and can be equipped with either rubber or steel conditioning rolls depending on crop requirements. These mower-conditioners utilize a modular cutterbar with individually sealed gear modules that simplify servicing while protecting the driveline from catastrophic failures. Hydraulic swing, hydraulic lift, transport lighting and a swivel hitch improve field efficiency and road transport, while the low PTO horsepower requirement allows operation with a wide range of agricultural tractors.

Machine Information

Professional Workshop Coverage

Professional Repair Procedures

• Disassemble and rebuild MowMax™ cutterbar assemblies using factory workshop procedures.
• Inspect individual cutterbar modules for gear wear, lubrication condition and bearing damage.
• Repair conditioning roll drive systems and restore proper roll timing.
• Service PTO driveline components, slip clutch assemblies and universal joints.
• Adjust flotation and suspension systems for consistent cutterbar ground pressure.
• Diagnose hydraulic lift and swing circuits using factory testing methods.
• Replace seals, bearings and gearbox components according to OEM service limits.
• Verify knife installation, disc timing and cutterbar alignment before field operation.
• Use factory wiring diagrams to troubleshoot transport lighting and electrical faults.
• Follow tightening sequences and torque specifications throughout every repair.
• Utilize exploded illustrations for accurate component identification and assembly.
• Perform complete operational inspections before returning the machine to harvesting service.

Manual Specifications

Frequently Asked Questions

Which models are covered by this repair manual?

This factory workshop manual covers the New Holland H7230 and H7330 Discbine® Center Pivot Mower-Conditioners.

Does the manual include complete cutterbar overhaul procedures?

Yes. It contains detailed repair procedures for the MowMax™ modular cutterbar, gear modules, bearings, seals, discs and knife drive components.

Are hydraulic and PTO systems included?

Yes. The manual provides professional workshop procedures for hydraulic lift circuits, swing systems, PTO drivelines, universal joints and slip clutch servicing.

Does this manual contain wiring diagrams and hydraulic schematics?

Yes. Factory wiring diagrams, hydraulic schematics, diagnostic charts and exploded illustrations are included throughout the manual.

Who should use this repair manual?

This manual is intended for New Holland dealership technicians, agricultural equipment workshops, commercial hay producers, farm maintenance departments and experienced mechanics performing professional repairs.
