New Holland Guardian SP.240R, Guardian SP.275R Sprayer Pdf Repair Service Manual (p. Nb. 47377943)

New Holland Guardian SP.240R, Guardian SP.275R Sprayer PDF Repair Service Manual (Publication No. 47377943)

High-clearance sprayers are expected to cover thousands of acres while maintaining precise application rates, stable boom performance and dependable drivetrain reliability. The New Holland Guardian SP.240R and Guardian SP.275R Self-Propelled Sprayers were engineered for professional crop protection, combining powerful diesel engines, hydrostatic propulsion, advanced boom hydraulics and large-capacity solution tanks for maximum field productivity. During long spraying seasons, components such as the hydrostatic drive, suspension, steering, spraying system and hydraulic circuits operate under continuous stress. This OEM factory repair service manual provides the same workshop procedures used by New Holland dealership technicians to diagnose faults, repair components and return the sprayer to peak operating condition.

This OEM Factory Repair Service Manual (Publication No. 47377943) covers the New Holland Guardian SP.240R and Guardian SP.275R Sprayers. It includes complete repair procedures for the engine, hydrostatic transmission, front axle, hydraulic systems, steering, pneumatic systems, spray solution delivery components, electrical systems, climate-controlled cab, chassis assemblies and factory diagnostics using official New Holland workshop specifications.

Designed for High-Acreage Precision Spraying

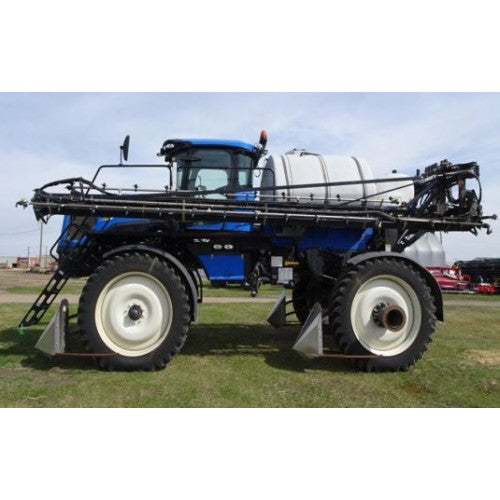

The Guardian R-Series was developed for commercial farming operations requiring accurate chemical application with minimal downtime. The SP.240R delivers approximately 240 HP, while the SP.275R produces approximately 275 HP. Both machines feature hydrostatic drive, product tanks up to 1,200 gallons (4,542 L), boom options reaching 120 ft (36.6 m) on selected models, excellent crop clearance and an operator-focused cab with integrated sprayer controls. Their balanced chassis, advanced suspension and responsive hydraulic boom control make them ideal for applying herbicides, fungicides and liquid fertilizers across large farming operations.

Machine Information

OEM Workshop Coverage

Typical Dealer-Level Repairs

• Calibrate the hydrostatic drive following transmission repairs.
• Repair spray pump assemblies and verify application pressure.
• Inspect hydraulic boom lift cylinders and folding mechanisms.
• Diagnose electrical faults using OEM wiring diagrams.
• Pressure-test hydraulic circuits before replacing pumps or valves.
• Service steering components for precise row tracking.
• Inspect suspension and wheel assemblies before spraying season.
• Repair climate-control components for improved operator comfort.
• Use exploded assembly drawings during complete component rebuilding.
• Measure wear using official New Holland service specifications.
• Perform final sprayer calibration before returning the machine to field operation.

Manual Specifications

Frequently Asked Questions

Which sprayer models are covered by this repair manual?

This OEM workshop manual covers the New Holland Guardian SP.240R and Guardian SP.275R Self-Propelled Sprayers using Publication No. 47377943.

Does this manual include spray system and boom hydraulic repairs?

Yes. It provides complete repair procedures for the spraying system, hydraulic boom controls, solution pump, hydrostatic drive, steering, engine and electrical systems.

Are hydraulic schematics and electrical wiring diagrams included?

Yes. The manual contains complete OEM hydraulic schematics, electrical wiring diagrams and detailed diagnostic procedures for efficient troubleshooting.

Can this manual be used for complete sprayer rebuilding?

Absolutely. It includes step-by-step instructions for complete disassembly, inspection, overhaul, calibration and operational testing of all major machine systems.

Who should use this OEM repair service manual?

This manual is ideal for New Holland dealership technicians, commercial spraying fleets, agricultural equipment repair facilities and experienced mechanics maintaining Guardian R-Series sprayers.
