New Holland 900 Harvester Pdf Repair Service Manual (p. Nb. 40090013)

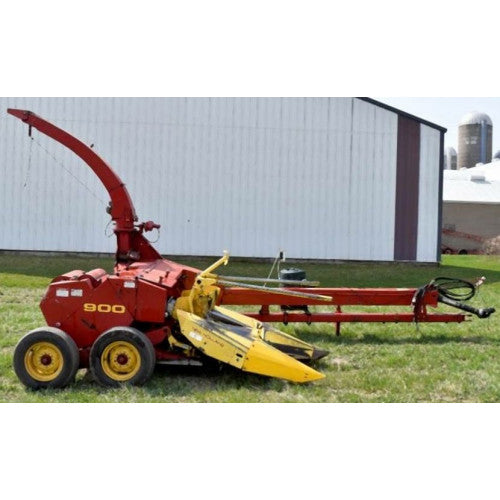

New Holland 900 Forage Harvester PDF Repair Service Manual (Publication No. 40090013)

For operators running a pull-type forage harvester, a clean chop and uninterrupted crop flow are more valuable than raw horsepower. The New Holland 900 Forage Harvester was engineered to process heavy corn silage, grass and haylage through a precisely timed feed system where the bevel gearbox, feed rolls, cutterhead and blower must work in perfect harmony. When one component falls out of specification, the symptoms often appear elsewhere—uneven chop length, frequent plugging, excessive vibration or poor crop discharge. This OEM Factory Repair Service Manual was created to help technicians identify those root causes using the same repair procedures followed by New Holland dealership workshops.

Unlike generic repair books that concentrate on routine maintenance, Publication No. 40090013 focuses on complete workshop repairs. It includes dedicated sections for the bevel gearbox, reversing gearbox, cutterhead clutch, feed rolls, blower assembly, hydraulic components and the MetalAlert II electronic metal detection system, allowing major repairs to be completed according to original factory specifications.

Machine Information

Why Experienced Workshops Keep This Manual Nearby

Many failures on the New Holland 900 are mechanical chain reactions rather than isolated component problems. A worn feed roll drive can overload the cutterhead, an incorrectly adjusted shear bar can reduce chop quality, and blower clutch issues can limit crop discharge even though the cutterhead is operating normally. This manual explains those relationships with detailed inspection sequences, service limits and overhaul procedures so repairs solve the actual fault instead of masking its symptoms.

Workshop Jobs This Manual Is Designed For

• Rebuild the bevel gearbox after bearing or gear wear develops during heavy silage harvesting.
• Adjust the shear bar and cutterhead knives to restore uniform theoretical chop length.
• Repair the reversing gearbox electric clutch following foreign-object ingestion.
• Synchronize feed roll timing after replacing worn shafts or bearings.
• Inspect and rebuild the blower fan assembly to improve forage discharge efficiency.
• Diagnose MetalAlert II stopping-system faults before cutterhead damage occurs.
• Service hydraulic tongue swing and attachment lift cylinders.
• Replace worn wheel bearings and inspect axle assemblies before transport season.
• Use factory wiring diagrams to trace intermittent electrical faults affecting spout controls.
• Measure reusable gearbox and clutch components against original New Holland service limits.

Factory Repair Coverage

Manual Specifications

Frequently Asked Questions

Does this manual explain why the New Holland 900 begins producing uneven chop lengths?

Yes. It includes factory adjustment procedures for the cutterhead knives, shear bar and feed roll timing so technicians can correct the source of inconsistent chopping instead of making trial-and-error adjustments.

Is the MetalAlert II stopping system covered in detail?

Absolutely. The manual contains dedicated diagnostic procedures, wiring diagrams, current-flow explanations and testing instructions for the MetalAlert II electronic metal detection system.

Can I rebuild the blower gearbox using this publication?

Yes. Separate workshop sections cover blower paddles, fan bearings, slip clutch adjustments and the two-speed blower gearbox, making it suitable for complete blower assembly overhauls.

Does the repair manual include hydraulic cylinder servicing?

Yes. It explains repair procedures for attachment lift cylinders and hydraulic tongue swing cylinders, together with supporting hydraulic component information.

Who will benefit most from this OEM workshop manual?

This publication is ideal for forage harvesting contractors, dairy farm maintenance teams, agricultural equipment workshops and owners restoring or maintaining a New Holland 900 Harvester to original factory standards.
