New Holland 450FI Rotary Harvesting Header PDF Repair Service Manual (Publication No. 84291050)

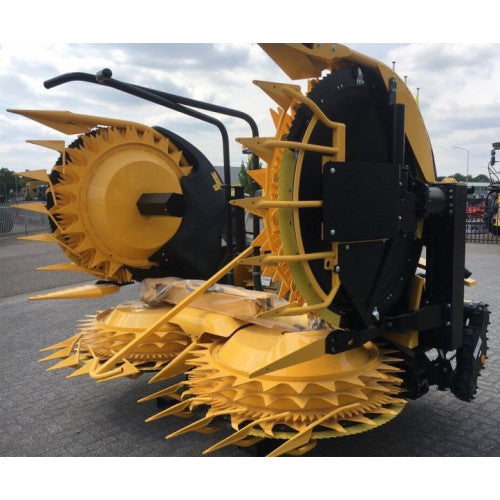

When harvesting high-yield forage corn, consistent crop feeding is just as important as chopping performance. The New Holland 450FI Rotary Harvesting Header was engineered to deliver aggressive crop intake while maintaining a smooth, uninterrupted flow into New Holland FR Series self-propelled forage harvesters. Its synchronized rotary harvesting units, reinforced gearbox transmission and heavy-duty frame allow the header to operate efficiently in dense standing crops while minimizing crop losses and reducing driveline stress.

Rotary harvesting equipment operates under continuous shock loads, dust, vibration and varying crop conditions. Bearings, rotary drums, drive shafts, gearboxes, chains, hydraulic lift components and structural assemblies require accurate servicing to maintain harvesting efficiency. This OEM Factory Repair Service Manual (Publication No. 84291050) provides factory workshop procedures for inspection, diagnostics, testing, adjustment and complete component overhaul using official New Holland repair specifications.

Purpose-Built for Heavy Corn Harvesting

The 450FI was developed for professional forage contractors requiring dependable performance throughout long harvesting seasons. Multiple synchronized rotary gathering drums actively pull standing corn toward the feed rolls while maintaining even crop flow across the entire header width. The robust mechanical driveline and hydraulic header lift system help maintain productivity in varying field conditions, while the reinforced chassis is designed to withstand demanding commercial harvesting applications.

Machine Information

Factory Workshop Coverage

Professional Workshop Procedures

• Synchronize rotary harvesting modules after driveline repairs.
• Replace worn drum bearings and inspect shaft alignment.
• Rebuild gearbox assemblies using OEM service procedures.
• Adjust gathering module timing for uniform crop intake.
• Inspect chain drives and sprocket wear before harvest.
• Service PTO driveline couplings and universal joints.
• Repair hydraulic lift cylinders and hose assemblies.
• Inspect frame weldments and mounting hardware for fatigue.
• Use exploded assembly illustrations during rebuilding.
• Apply factory torque specifications throughout repairs.
• Complete operational testing after mechanical servicing.
• Verify consistent crop flow before returning the header to field operation.

Manual Specifications

Frequently Asked Questions

Which machine is covered by this repair manual?

This OEM factory workshop manual covers the New Holland 450FI Rotary Harvesting Header (Publication No. 84291050).

Does the manual include rotary drum and gearbox repairs?

Yes. It contains complete repair procedures for rotary gathering units, drive gearboxes, bearings, PTO driveline components and chain drive systems.

Are hydraulic lift components covered?

Yes. The manual explains inspection, testing and repair of the hydraulic lift system, cylinders, hoses and control components.

Does this manual contain exploded diagrams and factory specifications?

Yes. It includes OEM exploded illustrations, mechanical layouts, hydraulic schematics, torque charts, adjustment data and troubleshooting procedures.

Who should use this workshop manual?

This manual is intended for New Holland dealership technicians, forage harvesting contractors, agricultural repair workshops and experienced mechanics servicing the New Holland 450FI Rotary Harvesting Header.
