New Holland 2331, 2332 Disc Header For TV140 Pdf Repair Service Manual (p. Nb. 86643834)

New Holland 2331, 2332 Disc Header for TV140 PDF Repair Service Manual (Publication No. 86643834)

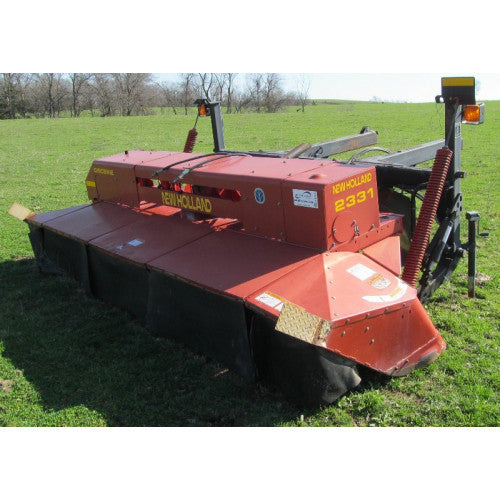

Unlike conventional front- or rear-mounted mower-conditioners, the New Holland 2331 and 2332 Disc Headers were specifically engineered for the TV140 Bi-Directional Tractor, allowing operators to work with excellent forward visibility while maintaining balanced machine weight and efficient crop flow. This unique mounting system improves maneuverability in irregular fields and enables high-capacity mowing with reduced operator fatigue.

The disc cutterbar, conditioning system, header driveline, flotation suspension and hydraulic lift mechanisms are subjected to continuous impact loads while operating across uneven terrain. Maintaining factory performance requires accurate adjustment of cutterbar timing, conditioner clearance and hydraulic components. This OEM Factory Repair Service Manual (Publication No. 86643834) provides dealership-level procedures for diagnostics, inspection, adjustment and complete component overhaul, helping technicians restore dependable cutting performance before every hay season.

Designed Specifically for the TV140 Bi-Directional Tractor

The 2331 and 2332 headers were not designed as stand-alone mower units. They integrate directly with the TV140's bi-directional operating concept, placing the header at the leading end of the machine during field operation. This configuration improves crop visibility, reduces crop contamination and provides smoother weight distribution compared with conventional pull-type mower-conditioners.

Machine Information

Factory Workshop Coverage

Professional Workshop Procedures

• Restore cutterbar timing after gearbox or disc module replacement.
• Adjust conditioner roll clearance according to crop type and moisture conditions.
• Inspect flotation linkage to maintain even ground pressure across the cutterbar.
• Replace worn knife hardware before high-speed harvesting operations.
• Service PTO driveline components to eliminate vibration under load.
• Inspect cutterbar oil level and gear module condition during seasonal maintenance.
• Repair hydraulic lift circuits and verify proper float pressure.
• Inspect the TV140 adapter frame for alignment before header installation.
• Use exploded OEM illustrations during complete cutterbar rebuilding.
• Apply factory torque specifications throughout every structural repair.
• Verify disc overlap and cutting quality after servicing.
• Perform complete operational testing before returning the header to field service.

Manual Specifications

Frequently Asked Questions

Which machines are covered by this repair manual?

This OEM factory workshop manual covers the New Holland 2331 and 2332 Disc Headers designed for the TV140 Bi-Directional Tractor.

Does the manual include cutterbar and conditioner repairs?

Yes. It contains complete factory procedures for cutterbar rebuilding, disc timing, conditioning roll adjustment, bearing replacement and complete mechanical servicing.

Are TV140 mounting components included?

Yes. The manual includes procedures for servicing the 2330BF adapter frame, mounting hardware, flotation linkage and header alignment.

Does the manual include hydraulic troubleshooting?

Yes. Factory hydraulic schematics, lift system diagnostics, float adjustments and pressure testing procedures are included.

Who should use this workshop manual?

This manual is intended for New Holland dealership technicians, forage equipment repair facilities, hay producers, agricultural contractors and experienced mechanics servicing the 2331 and 2332 Disc Headers.
