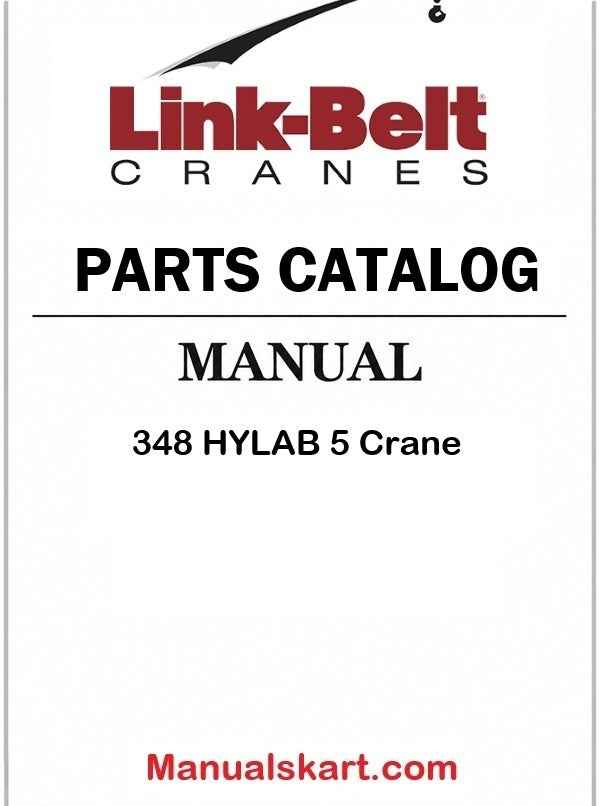

For a large-capacity crawler crane like the Link Belt 348 HYLAB 5, accurate parts identification is essential because every component must match the correct crane configuration. The Link Belt 348 HYLAB 5 Crane PDF Parts Catalog Manual provides factory-style illustrated parts information to help owners, parts specialists, and fleet teams identify replacement items with confidence.

This 348 HYLAB 5 digital parts reference includes organized parts listings, part numbers, item descriptions, illustrated parts views, and component location references. It is created for users who need a reliable source for selecting the correct replacement parts used throughout this heavy-duty hydraulic lattice boom crawler crane.

About The Link Belt 348 HYLAB 5 Heavy Lift Crawler Crane

The Link Belt 348 HYLAB 5 is a high-capacity hydraulic lattice boom crawler crane engineered for demanding lifting environments where strength, reach, and crawler stability are required. This model is built in the 300 US ton lifting capacity class and is commonly used for bridge construction, power plants, infrastructure projects, industrial facilities, and major heavy-lift operations.

The 348 HYLAB 5 crane platform supports long lattice boom arrangements, with configurations reaching approximately 355 ft maximum boom length and additional jib arrangements up to approximately 240 ft depending on setup. Its crawler-mounted design allows the machine to work in challenging construction environments while supporting different lifting configurations.

Because a 300-ton crawler crane contains a wide range of configuration-specific parts, this illustrated catalog helps users identify the exact replacement item using catalog references instead of depending only on visual comparison.

348 HYLAB 5 Crane Technical Overview

Machine Details	Information
Crane Model	348 HYLAB 5
Manufacturer	Link-Belt
Equipment Family	HYLAB Hydraulic Lattice Boom Crawler Crane
Maximum Capacity Class	Approx. 300 US Tons
Boom Arrangement	Heavy-Duty Lattice Boom Configuration
Maximum Boom Reach	Approx. 355 ft Depending On Crane Setup
Jib Configuration Range	Up To Approx. 240 ft Depending On Arrangement
Travel Platform	Crawler Mounted Heavy Lift Carrier
Common Job Applications	Industrial Construction, Energy Sites, Bridge Projects & Heavy Infrastructure

348 HYLAB 5 Parts Catalog PDF Details

Catalog Information	Details
Manual Purpose	Parts Lookup, Component Identification & Ordering Reference
Covered Equipment	Link Belt 348 HYLAB 5 Crane
Document Category	Illustrated Parts Catalog Manual
Information Included	Part Numbers, Item Names, Parts Descriptions & Illustrated Parts Lists
File Type	Digital PDF Format
Delivery	Instant Download After Secure Checkout
Device Access	Computer, Tablet, Smartphone & PDF Reader Compatible
Language	English
Support Availability	24/7 Live Customer Chat Support Available

Detailed Parts Identification Coverage

The 348 HYLAB 5 factory parts catalog separates machine parts into organized groups, allowing users to locate replacement items using part numbers and illustrated references.

• Counterweight and crane body parts: Provides references for counterweight-related items, covers, panels, brackets, guards, fasteners, decals, and exterior replacement components.
• Operator control area parts: Includes cab component numbers, control item references, display-related parts, seat components, switches, and interior replacement items.
• Lattice boom and attachment parts: Helps identify boom section items, pin references, connection hardware, sheave-related parts, pendant components, and attachment items.
• Crawler lower carrier parts: Includes crawler shoe information, roller item references, drive-related components, lower frame parts, covers, and hardware listings.
• Hydraulic component references: Provides hydraulic pump part numbers, valve-related items, cylinder references, hose information, fittings, filters, seals, and hydraulic replacement parts.
• Electrical parts listings: Covers wiring harness numbers, connectors, sensors, lighting items, switches, and electrical component references.
• Load handling related parts: Provides winch part references, drum items, brake component numbers, hook equipment references, and related replacement part details.

Built For Accurate Heavy Crane Parts Management

The Link Belt 348 HYLAB 5 uses many specialized parts due to its high-capacity crawler design and multiple boom configurations. Small differences between components can affect part selection, making accurate catalog information important.

This illustrated parts book supports parts departments, crane rental fleets, and equipment owners by providing organized item references and descriptions needed before ordering replacement components.

The PDF format makes the catalog easy to store digitally and access whenever parts information is required in the workshop, office, or field.

Instant Digital Manual Access

The Link Belt 348 HYLAB 5 PDF parts catalog is delivered digitally after secure checkout, allowing quick access without waiting for printed documentation.

The manual can be saved and viewed on compatible devices including desktop computers, laptops, tablets, and smartphones. Customers also receive access to our 24/7 live chat support for download assistance.

Frequently Asked Questions

What makes the 348 HYLAB 5 parts catalog different from smaller crane models?

The 348 HYLAB 5 is a 300-ton class crawler crane, so the catalog includes parts references specific to its larger boom configurations, crawler platform, and heavy-lift components.

Can this catalog help identify correct replacement part numbers?

Yes. The manual provides part numbers, descriptions, and illustrated references designed for accurate parts identification.

Does this parts book include information for the lattice boom configuration?

Yes. It includes boom-related parts references such as sections, connection items, pins, hardware, and related replacement components.

Are crawler and counterweight-related parts listed?

Yes. The catalog provides references for crawler components, counterweight-related items, exterior parts, and hardware.

Does this catalog include hydraulic and electrical item references?

Yes. Users can identify hydraulic components and electrical replacement items using the catalog information.

Is this the correct manual for crane repair instructions?

No. This is a Parts Catalog Manual designed only for parts identification. Repair procedures are covered in a separate service manual.

Can fleet operators keep this catalog digitally?

Yes. The PDF format allows storage and viewing on compatible computers and mobile devices.

How quickly is the manual available?

The PDF catalog is available instantly after completing secure checkout.
