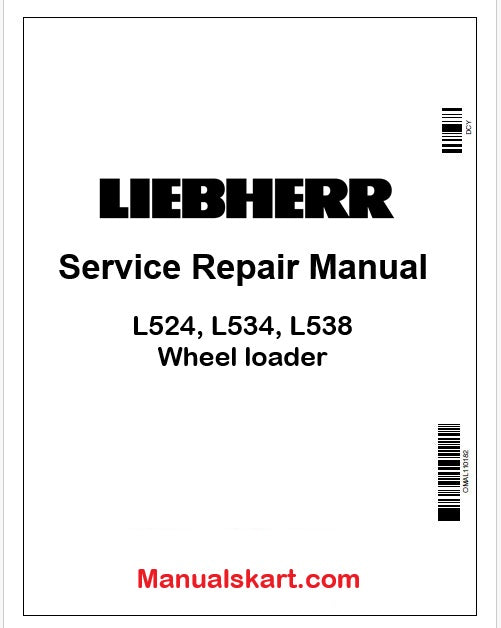

Liebherr L524, L534, L538 Wheel loader PDF Repair Service Manual

Liebherr L524, L534, L538 Wheel Loader Repair Service Manual PDF

The Liebherr L524, L534, and L538 Wheel Loader Repair Service Manual PDF is built for technicians who regularly maintain Liebherr loaders operating in demanding loading, stockpiling, and material transport environments. These models are known for their balanced lifting capacity and hydrostatic travel control, making them highly efficient across construction projects, aggregate yards, and agricultural operations. When performance begins to change — such as slower lifting cycles, reduced traction under load, steering irregularities, or electronic warning alerts — accurate diagnostic information becomes essential. This workshop manual provides manufacturer-level repair procedures that help users understand how hydraulic power, drivetrain response, and electronic monitoring systems function together during real working conditions.

Technical Specifications & Manual Information

• Models Covered: Liebherr L524, L534, L538 Wheel Loaders
• Manual Type: Factory Repair Service & Workshop Manual
• Format: Searchable PDF with Detailed Schematics
• Machine Category: Hydrostatic Wheel Loader
• System Coverage: Engine, Hydraulic System, Travel Drive, Electrical & Loader Equipment
• Language: English
• Delivery Method: Instant Digital Download

Why Proper Documentation Matters for These Loader Models

The L524, L534, and L538 share a design philosophy focused on smooth operation and fuel-efficient performance. Because multiple systems interact continuously during loading cycles, symptoms like overheating hydraulics or uneven machine movement often originate from combined system behavior rather than a single failing component. This manual guides technicians through logical diagnostic paths, allowing them to verify hydraulic pressure values, evaluate drivetrain performance, and inspect control electronics step by step.

Understanding these relationships allows repairs to be completed faster while maintaining factory operating standards.

Areas of Service Explained Inside

• Hydraulic pump inspection, pressure testing, and valve calibration
• Hydrostatic travel drive diagnostics and performance adjustment
• Engine servicing procedures and cooling system evaluation
• Electrical wiring diagrams with sensor and connector identification
• Loader arm assemblies, bucket linkage inspection, and cylinder repair
• Axle, braking system, and steering component maintenance

Technical Reference Data Included

This manual provides tightening torque specifications, inspection limits, hydraulic measurement charts, and structured disassembly instructions required for professional workshop repairs. Clear diagrams help technicians visualize assemblies and perform maintenance confidently whether working in a service facility or directly on-site.

For more verified workshop manuals and professional heavy equipment documentation, visit Manualskart Heavy Equipment Service Manuals. You can also explore similar Liebherr equipment manuals through the Liebherr Equipment Manuals Collection.

Frequently Asked Questions

Does this manual help diagnose hydraulic performance problems?

Yes. Detailed hydraulic schematics and pressure testing procedures are included for accurate troubleshooting.

Are drivetrain and travel system repairs covered?

Yes. The manual explains inspection and calibration procedures for the hydrostatic travel system.

Is it suitable for professional workshop use?

Yes. The documentation contains factory-level repair and maintenance instructions.

How is the manual delivered?

You receive instant access to the downloadable PDF immediately after purchase confirmation.
