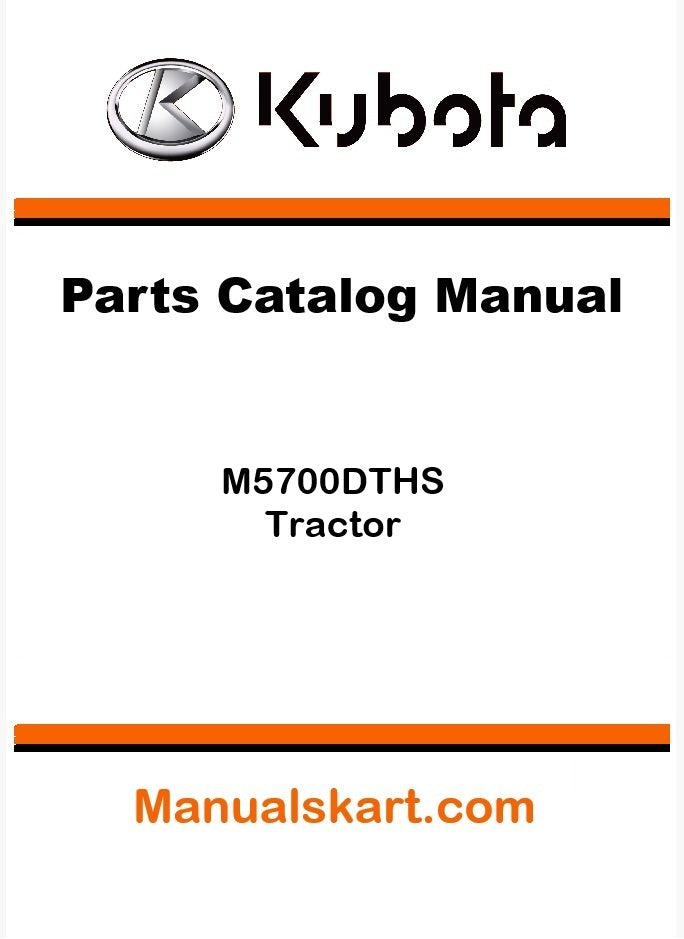

Kubota M5700DTHS Tractor Parts Catalog Pdf Manual

Kubota M5700DTHS Tractor Parts Catalog Manual PDF – Hydraulic Shuttle Directory

Intro: High-cycle loader work and intensive field applications demand a tractor that can handle frequent directional changes without mechanical fatigue. The Kubota M5700DTHS parts catalog PDF is the specialized engineering directory for your hydraulic shuttle-equipped 4WD workhorse. Unlike standard gear-drive models, the "HS" variant utilizes a sophisticated fluid-driven shifting system that requires precise hardware identification during maintenance. This official digital manual provides high-definition exploded structural blueprints, linking every specialized shuttle valve, internal wet clutch disc, and heavy-duty 4x4 casting directly to its authentic OEM manufacturer number. Instantly downloadable to your smartphone, tablet, or workshop PC, this guide ensures your procurement is 100% accurate, preventing the costly downtime of incorrect parts orders.

The M5700DTHS is a premium iteration of the 62-HP M-series, specifically engineered for smooth, clutchless forward-to-reverse transitions. However, the added complexity of the hydraulic shuttle transmission and the Dual Traction (DT) front axle means that guessing at part numbers is a significant risk. Whether you are performing a mid-season overhaul of the front bevel gears or sourcing specific hydraulic filtration for the shuttle system, this model-exclusive illustrated directory acts as your visual roadmap. It guarantees that every replacement part, from the smallest O-ring to the primary transmission shafts, aligns flawlessly with the original factory specifications for your exact chassis.

Audience: Who Needs This Technical Directory?

• Professional Diesel Technicians: Accelerate your service bay turnaround by using the factory-verified exploded views to understand the intricate assembly of the hydraulic shuttle valving and 4WD front axle before unbolting a single component.
• Agricultural Fleet Managers: Protect your seasonal productivity by independently identifying the correct part numbers for HS-specific items like wet clutch plates, shuttle levers, and specialized hydraulic lines before an emergency arises.
• Independent Farm Operators: Reclaim control over your maintenance budget. Use the exact OEM numbers to source genuine replacement sensors, filters, and implement linkages on your own terms, bypassing dealership parts-counter delays.

Manual Specifications & Fulfillment Details

Comprehensive System Coverage

To help you navigate thousands of hardware listings, this PDF is logically segmented into primary mechanical and structural zones. Note: This is an Illustrated Parts Catalog for hardware identification; it does not contain step-by-step diagnostic text, torque values, or written repair procedures.

• Hydraulic Shuttle & Powertrain Mechanics: Detailed visual mapping of the shuttle shift valves, internal wet clutch packs, synchronized gear clusters, and the primary HS transmission casing.
• Dual Traction Front Driveline (4x4): Comprehensive visual breakdowns of the powered front axle housing, transfer case mechanisms, active bevel gears, and specialized heavy-duty steering knuckles.
• 5-Cylinder Engine (F2803-EA) Core: Authentic OEM tracking for the liquid-cooled engine block, pistons, crankshaft, valvetrain, water pump assembly, and the high-pressure fuel injection network.
• Hydraulics & Rear Lift Control: Exact manufacturer numbers for the primary fluid pressure pump, auxiliary control valves, lift cylinders, and the heavy-duty Category I & II rear 3-point hitch setup.
• Chassis, ROPS & Electrical: Accurate routing for the dashboard instrumentation, safety lighting harnesses, starter circuits, open-station seating, and the roll-over protective structure.
