Hino FD1J, GD1J, FG1J, FL1J, FM1J Truck Pdf Workshop Service Manual

Hino FD1J, GD1J, FG1J, FL1J, FM1J Truck Pdf Workshop Service Manual

Get the complete Hino FD1J, GD1J, FG1J, FL1J, FM1J Truck Workshop Service Manual in PDF format – your essential guide for maintenance, troubleshooting, and repairs. Designed for mechanics, technicians, and DIY enthusiasts, this comprehensive service manual provides step-by-step instructions, detailed diagrams, and factory specifications for all major systems including engine, transmission, brakes, suspension, electrical, and more.

Size: 47.52 MB
Format: PDF
Language: English
Brand: Hino
Type of Machine: Truck
Type of Manual: Workshop Manual
Model: Hino FD1J GD1J FG1J FL1J FM1J Truck
Number of Pages: 1223 Pages

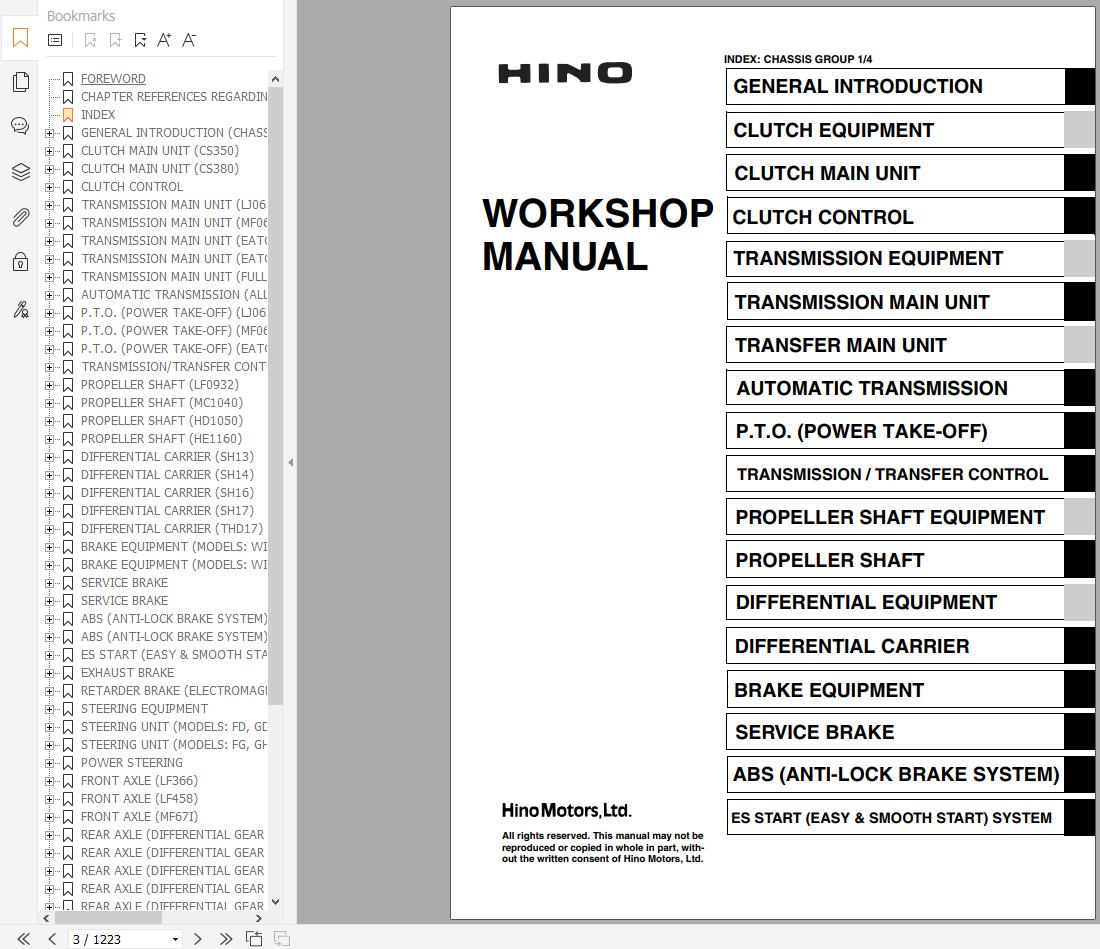

Contents:
FOREWORD
CHAPTER REFERENCES REGARDING THIS WORKSHOP MANUAL
INDEX
GENERAL INTRODUCTION (CHASSIS)
GENERAL INTRODUCTION
CLUTCH MAIN UNIT (CS350)
CLUTCH ASSEMBLY (CS350)
CLUTCH MAIN UNIT (CS380)
CLUTCH ASSEMBLY (CS380)
CLUTCH CONTROL
CLUTCH CONTROL UNIT
CLUTCH PEDAL AND RELEASE UNIT
CLUTCH MASTER CYLINDER
CLUTCH BOOSTER
TRANSMISSION MAIN UNIT (LJ06S)
TRANSMISSION ASSEMBLY (LJ06S)
GEAR SHIFT HOUSING (LJ06S)
INPUT SHAFT, OUTPUT SHAFT, GEARS AND RELATED PARTS (LJ06S)
COUNTER SHAFT, REVERSE IDLER SHAFT AND GEARS (LJ06S)
TRANSMISSION MAIN UNIT (MF06S)
TRANSMISSION ASSEMBLY (MF06S)
GEAR SHIFT HOUSING (MF06S)
INPUT SHAFT, OUTPUT SHAFT, GEARS AND RELATED PARTS (MF06S)
COUNTER SHAFT, REVERSE IDLER SHAFT AND GEARS (MF06S)
TRANSMISSION MAIN UNIT (EATON FS6109)
TRANSMISSION ASSEMBLY (EATON FS6109)
TRANSMISSION MAIN UNIT (EATON FS8209)
TRANSMISSION ASSEMBLY (EATON FS8209)
TRANSMISSION MAIN UNIT (FULLER RT8908LL)
TRANSMISSION ASSEMBLY (FULLER RT8908LL)
AUTOMATIC TRANSMISSION (ALLISON MD3060P, MD3560P)
AUTOMATIC TRANSMISSION ASSEMBLY
P.T.O. (POWER TAKE-OFF) (LJ06S TRANSMISSION)
POWER TAKE-OFF ASSEMBLY
POWER TAKE-OFF UNIT
P.T.O. (POWER TAKE-OFF) (MF06S TRANSMISSION)
POWER TAKE-OFF ASSEMBLY
POWER TAKE-OFF UNIT
P.T.O. (POWER TAKE-OFF) (EATON)
POWER TAKE-OFF ASSEMBLY
POWER TAKE-OFF UNIT
TRANSMISSION/TRANSFER CONTROL
TRANSMISSION CONTROL UNIT
TRANSMISSION CONTROL LINKAGE
POWER SHIFT (FOR LJ06 TRANSMISSION)
POWER SHIFT (FOR MF06 TRANSMISSION)
PROPELLER SHAFT (LF0932)
PROPELLER SHAFT ASSEMBLY
PROPELLER SHAFT (MC1040)
PROPELLER SHAFT ASSEMBLY
PROPELLER SHAFT (HD1050)
PROPELLER SHAFT ASSEMBLY
PROPELLER SHAFT (HE1160)
PROPELLER SHAFT ASSEMBLY
DIFFERENTIAL CARRIER (SH13)
DIFFERENTIAL CARRIER ASSEMBLY (SH13)
DIFFERENTIAL CARRIER (SH14)
DIFFERENTIAL CARRIER (SH14)
DIFFERENTIAL CARRIER (SH16)
DIFFERENTIAL CARRIER (SH16)
DIFFERENTIAL CARRIER (SH17)
DIFFERENTIAL CARRIER (SH17)
DIFFERENTIAL CARRIER (THD17)
DIFFERENTIAL CARRIER (THD17)
BRAKE EQUIPMENT (MODELS: WITH AIR OVER HYDRAULIC BRAKE)
SERVICE BRAKE ASSEMBLY
BRAKE EQUIPMENT (MODELS: WITH FULL AIR BRAKE)
SERVICE BRAKE ASSEMBLY
SERVICE BRAKE
PRESSURE GOVERNOR
AIR DRYER
SAFETY VALVE
BRAKE VALVE (MAKER:SANWA SEIKI)
BRAKE VALVE (WITH ES START)
BRAKE FLUID RESERVOIR
PROTECTION VALVE
PROTECTION VALVE (WITH 4-WAY PROTECTION VALVE)
QUICK RELEASE VALVE
BRAKE AIR BOOSTER (AIRMASTER) WITHOUT ABS
BRAKE AIR BOOSTER (AIRMASTER) WITH ABS
RELAY VALVE
SPRING BRAKE CONTROL VALVE
SPRING BRAKE CHAMBER
WHEEL BRAKE (MODEL: FD)
WHEEL BRAKE (MODEL: GD)
SERVICE BRAKE
PRESSURE REGULATOR (MODELS: FG,GH)
AIR DRYER (MODELS: FG, GH [WITHOUT ABS])
AIR DRYER (MODELS: FG, GH [WITH ABS])
AIR DRYER (MODELS: FL, FM)
CHECK VALVE
SAFETY VALVE
BRAKE VALVE
PROTECTION VALVE
PROTECTION VALVE (WITH 4-WAY PROTECTION VALVE)
QUICK RELEASE VALVE
SPRING BRAKE CONTROL VALVE
RELAY VALVE (TYPE-A)
RELAY VALVE (TYPE-B)
RELAY VALVE (TYPE-C: WITH CHECK VALVE)
SPRING BRAKE CHAMBER (TYPE-A)
SPRING BRAKE CHAMBER (TYPE-B)
WHEEL BRAKE
CUT VALVE
WHEEL BRAKE SLACK ADJUSTER (AUTO ADJUSTER)
BRAKE CHAMBER (MODELS: FG, GH)
BRAKE CHAMBER (MODELS: FL, FM)
TRAILER HAND BRAKE CONTROL VALVE (MODELS: FM1JKPA, FM2PKPA)
ABS (ANTI-LOCK BRAKE SYSTEM)
ABS
FRONT WHEEL BRAKE
REAR WHEEL BRAKE
ABS (ANTI-LOCK BRAKE SYSTEM) (WABCO MAKE)
ABS
FRONT WHEEL BRAKE
REAR WHEEL BRAKE
ES START (EASY & SMOOTH START SYSTEM)
ES START
ES START CONTROL VALVE
EXHAUST BRAKE
EXHAUST BRAKE SYSTEM
BRAKE CYLINDER
RETARDER BRAKE (ELECTROMAGNETIC RETARDER)
RETARDER BRAKE ASSEMBLY
STEERING EQUIPMENT
STEERING SYSTEM
STEERING UNIT (MODELS: FD, GD)
STEERING LINKAGE
STEERING UNIT (MODELS: FG, GH, FL, FM)
STEERING LINKAGE
POWER STEERING
POWER STEERING SYSTEM
POWER STEERING GEAR UNIT
POWER STEERING PUMP (J08C ENGINE)
OIL RESERVOIR
FRONT AXLE (LF366)
FRONT AXLE (LF366)
FRONT AXLE (LF458)
FRONT AXLE (LF458)
FRONT AXLE (MF67I)
FRONT AXLE (MF67I)
REAR AXLE (DIFFERENTIAL GEAR SERIES: SH13)
REAR AXLE (DIFFERENTIAL GEAR SERIES: SH13)
REAR AXLE (DIFFERENTIAL GEAR SERIES: SH14)
REAR AXLE (DIFFERENTIAL GEAR SERIES: SH14)
REAR AXLE (DIFFERENTIAL GEAR TYPE: SH16)
REAR AXLE (DIFFERENTIAL GEAR TYPE: SH16)
REAR AXLE (DIFFERENTIAL GEAR TYPE: SH17)
REAR AXLE (DIFFERENTIAL GEAR TYPE: SH17)
REAR AXLE (DIFFERENTIAL GEAR TYPE: THD17)
REAR AXLE (DIFFERENTIAL GEAR TYPE: THD17)
WHEEL & TIRE
WHEEL AND TIRE
SAE, JIS, DIN AND ISO TYPE WHEEL
SPOKE WHEEL AND ADAPTER TYPE WHEEL
SUSPENSION (MODELS: FD, GD)
LEAF SUSPENSION ASSEMBLY
SUSPENSION (MODELS: FG, GH)
SUSPENSION ASSEMBLY
SUSPENSION (MODELS: FL, FM)
LEAF SUSPENSION ASSEMBLY
SUSPENSION (HENDRICKSON HAS 200, HAS 230)
SUSPENSION ASSEMBLY
CHASSIS FRAME
CHASSIS FRAME
CAB
CAB ASSEMBLY
CAB MOUNTING PARTS
CAB TILT MECHAMISM (MODELS WITH DOUBLE CAB)
TILT CYLINDER (MODELS WITH DOUBLE CAB)
TILT PUMP (MODELS WITH DOUBLE CAB)
CAB LOCK MECHANISM
DOOR
SEAT
INSTRUMENT PANEL
HEATER AND AIR CONDITIONER
WINDSHIELD
ELECTRICAL EQUIPMEMT
ELECTRICAL PARTS
ELECTRIC WIRE
DIAGRAM
BRAKE CONTROL (ABS: AKEBONO BRAKE MAKE)
ANTI-LOCK BRAKE
BRAKE CONTROL (ABS: WABCO MAKE)
ANTI-LOCK BRAKE
BRAKE CONTROL (ES START)
ES START (EASY & SMOOTH START) SYSTEM
BRAKE CONTROL (ELECTROMAGNETIC RETARDER)
ELECTROMAGNETIC RETARDER
