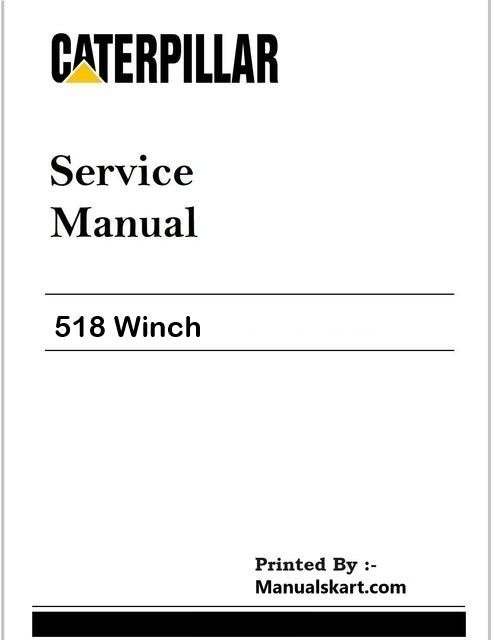

Caterpillar 518 Winch Repair & Service Pdf Manual 6KC, 67V

Repair & Service Manual with Detailed Schematics Overview

The Caterpillar 518 Winch PDF Repair & Service Manual is a specialized technical document focused on the maintenance, troubleshooting, and complete mechanical overhaul of the winch units utilized on the 518 series skidders. Specifically covering the 6KC and 67V serial number prefixes, this manual provides the manufacturer-verified procedures required to keep your logging operations running with maximum pulling power and safety.

In the forestry industry, the winch is the heart of the machine's productivity. Maintaining the clutch engagement, brake holding capacity, and hydraulic control valves is vital. This service manual is the definitive reference for technicians performing internal gear inspections, replacing friction discs, or calibrating the hydraulic pressure required for smooth cable spooling and high-strain log retrieval.

Winch Mechanical & Hydraulic Information

The Caterpillar 518 Winch (6KC, 67V) is designed for extreme durability under high shock loads. This manual provides exhaustive coverage of the internal planetary gear sets, the input shaft seals, and the heavy-duty drum bearings. It details the specialized maintenance required for winches operating in muddy, steep, or high-debris environments, ensuring the unit remains responsive and reliable.

The hydraulic control system is a critical focus of this guide. It includes step-by-step instructions for servicing the winch control valve, troubleshooting pump flow issues, and ensuring the winch brake releases and engages correctly. Detailed schematics help technicians trace pressure lines and identify the root cause of "winch creep" or failure to pull under load.

Systems & Service Coverage

• Complete repair and service procedures for Caterpillar 518 Winch (6KC, 67V)
• Mechanical Overhaul: Drum removal, planetary gear replacement, and drive shaft alignment
• Clutch & Brake System: Replacement of friction discs, adjustment of brake bands, and spring tension settings
• Hydraulic Controls: Control valve rebuilding, seal replacement, and pressure relief valve calibration
• Drive Group: Inspection of bevel gears, input splines, and lubrication oil flow
• Troubleshooting: Diagnostic guides for slipping under load, overheating, and slow line speed
• Maintenance: Oil change intervals, recommended lubricants, and filter service
• Technical Specs: Master torque specification tables, line pull capacities, and hydraulic pressure requirements
• Exploded Views: High-resolution drawings of all internal components for accurate reassembly

Manual Specifications

• Component Model: Caterpillar 518 Winch
• Serial Number Prefixes: 6KC, 67V
• Associated Machine: Caterpillar 518 Wheel Skidder
• Manual Type: Winch Service & Repair Manual
• Format: PDF Digital Download
• Language: English
• Total Pages: 250+
• Illustrations: Detailed technical drawings, hydraulic flow charts, and exploded views
• Device Compatibility: PC, Mac, Android, iOS, and Tablets

Why This Service Manual Is Important

• Provides factory-verified instructions specific to 6KC and 67V winch units
• Essential for ensuring the winch brake holds the maximum rated load safely
• Detailed hydraulic schematics prevent incorrect hose routing and pump damage
• Step-by-step assembly guides help prevent premature gear wear and seal leaks
• Crucial for loggers to reduce downtime by performing on-site winch repairs
• Instant search functionality allows you to find "Brake Adjustment" or "Torque Values" in seconds
