Case IH Quadtrac 470, Quadtrac 500, Quadtrac 540, Quadtrac 580, Quadtrac 620 Wheeled Tractor Pdf Service Repair Manual (Tier 4b Final)

Case IH Quadtrac 470, Quadtrac 500, Quadtrac 540, Quadtrac 580, Quadtrac 620 Wheeled Tractor PDF Repair Service Manual (Tier 4B Final) (PIN ZFF308001 And Above)

The Case IH Quadtrac 470, 500, 540, 580, 620 PDF Repair Service Manual is a complete factory workshop technical manual developed for Tier 4B Final Quadtrac tractors with PIN ZFF308001 and above. This manual provides detailed repair procedures, system diagnostics, calibration information, adjustments, component removal, installation, and troubleshooting procedures required for professional tractor servicing.

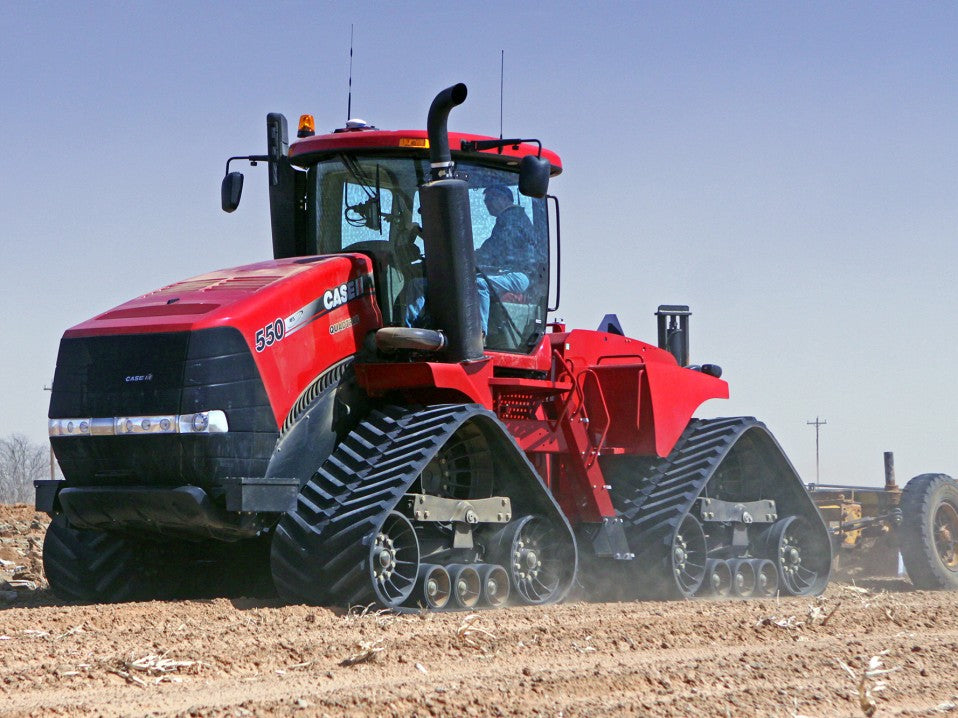

The Quadtrac 470 through Quadtrac 620 models are high horsepower four-track tractors designed for maximum traction, reduced soil compaction, and heavy draft agricultural applications. This repair manual covers the advanced mechanical, hydraulic, electronic, and track drive systems used in these machines including powertrain repairs, hydraulic testing, electrical diagnostics, and undercarriage servicing.

Case IH Quadtrac 470-620 Tier 4B Final Machine Specifications

Specification	Details
Manufacturer	Case IH
Models Covered	Quadtrac 470, Quadtrac 500, Quadtrac 540, Quadtrac 580, Quadtrac 620
PIN Coverage	ZFF308001 And Above
Emission Standard	Tier 4B Final
Machine Type	Articulated Four Track Agricultural Tractor
Engine Platform	FPT Cursor 12.9L Turbocharged Diesel Engine Platform
Engine Cylinders	6-Cylinder Diesel Configuration
Quadtrac 470 Rated Power	Approx. 470 Engine HP
Quadtrac 500 Rated Power	Approx. 500 Engine HP
Quadtrac 540 Rated Power	Approx. 540 Engine HP
Quadtrac 580 Rated Power	Approx. 580 Engine HP
Quadtrac 620 Rated Power	Approx. 620 Engine HP
Peak Power Range	Up To Approx. 680+ HP Class Depending On Model
Transmission System	16 Forward / 2 Reverse Full Powershift Transmission
Hydraulic System Type	Closed Center Pressure Flow Compensated Hydraulic System
Maximum Hydraulic Flow	Up To Approx. 113 GPM High Flow Option
Remote Hydraulic Valves	Multiple Rear Remote Valve Options
Track Drive System	Four Independent Positive Drive Track Modules
Track Belt Width Options	30 Inch And 36 Inch Class Options Depending On Setup
Fuel Capacity	Approx. 470 Gallon Class
DEF System	Diesel Exhaust Fluid SCR Aftertreatment System
Operating Weight Range	Approx. 53,000+ lbs To 60,000+ lbs Depending On Ballast
Electrical Control	CAN Network, Electronic Controllers, Sensors And Diagnostic Systems
Main Applications	Large Air Seeders, Deep Tillage, Rippers, Heavy Implements And High Draft Farming

Quadtrac 470 And Quadtrac 500 Repair Service Details

The Quadtrac 470 and 500 models combine high engine output with a four-track traction system designed for demanding field conditions. Correct repair procedures are required for maintaining track alignment, drivetrain efficiency, hydraulic performance, and electronic control operation.

This service manual provides procedures for transmission testing, hydraulic pressure checks, track module inspection, steering system diagnosis, and electrical troubleshooting.

Quadtrac 540, Quadtrac 580 And Quadtrac 620 Advanced Repair Coverage

The Quadtrac 540, 580, and 620 tractors operate with extremely large implements where hydraulic flow, cooling capacity, drivetrain strength, and track system reliability are critical.

The workshop manual supports professional repairs including final drive servicing, powershift calibration, SCR diagnostics, hydraulic circuit testing, controller troubleshooting, and heavy-duty component repairs.

Quadtrac Track System And Final Drive Service

• Track belt inspection and adjustment procedures
• Track tension system troubleshooting
• Drive wheel service procedures
• Idler and roller component inspection
• Track frame assembly repair information
• Planetary final drive servicing
• Track alignment problem diagnosis
• Bearing and seal replacement procedures

Powertrain, Hydraulic And Electrical Repair Sections

• Transmission: Powershift calibration, clutch pressure testing, shifting diagnostics, controller checks, and internal component repairs.
• Hydraulic System: PFC pump testing, flow measurement, remote valve service, steering hydraulic diagnosis, and hydraulic schematic information.
• Electrical System: Wiring diagrams, CAN communication testing, controllers, sensors, switches, harness inspection, and fault diagnosis.
• Engine Support: Cooling system service, fuel system diagnosis, lubrication checks, SCR/DEF troubleshooting, and related component repair.

Case IH Quadtrac PDF Manual Specifications

Manual Information	Details
Manual Type	Factory Repair Service Manual / Workshop Technical Manual
Models Covered	Case IH Quadtrac 470, 500, 540, 580, 620
PIN Range	ZFF308001 And Above
Manual Language	English
Repair Level	Professional Diagnostic And Component-Level Service
Service Information	Testing, Adjustment, Calibration, Removal, Installation And Repair Procedures
Covered Systems	Engine, Transmission, Hydraulics, Electrical, Track Drive, Steering And Brakes
Diagram Information	Electrical Wiring Diagrams, Hydraulic Schematics And Technical Illustrations
Format	PDF Digital Manual
Search Feature	Searchable Text Supported
Printing	Printable Pages Supported
Access	Offline Access After Download
Delivery	Instant Download After Purchase

Technician Troubleshooting Examples

• Track system vibration or uneven wear
• Track tension and alignment problems
• Powershift transmission shifting faults
• Hydraulic flow loss under heavy loads
• Remote valve performance problems
• Final drive overheating or noise
• SCR / DEF system fault warnings
• CAN communication failures
• Sensor signal problems
• Steering hydraulic issues

Frequently Asked Questions

Does this manual cover Quadtrac tractors with PIN ZFF308001 and above?

Yes. This repair manual covers Case IH Quadtrac 470, 500, 540, 580, and 620 Tier 4B Final tractors with PIN ZFF308001 and above.

Does this manual include track drive system repairs?

Yes. It includes Quadtrac track module service, alignment, tension adjustment, final drive, and related repair information.

Are hydraulic schematics included?

Yes. Hydraulic sections include pump testing, pressure checks, circuit information, and troubleshooting procedures.

Does it provide electrical wiring diagrams?

Yes. Wiring diagrams, controllers, CAN systems, sensors, and electrical diagnostics are included.

Does this manual cover transmission calibration?

Yes. It provides powershift transmission testing, calibration, troubleshooting, and repair information.
