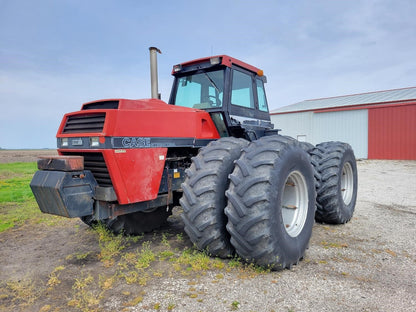

Case IH 4894 Tractor Pdf Service Repair Manual

Case IH 4894 Tractor PDF Repair Service Manual

Modern broad-acre farming demands a tractor that can transfer every horsepower into productive work while maintaining precise steering and hydraulic performance throughout long operating days. The Case IH 4894 Tractor was engineered for exactly that purpose. Featuring a rigid-frame four-wheel-drive chassis, selectable four-wheel steering modes and a pressure-and-flow compensated hydraulic system, the 4894 became one of the most capable tractors for deep tillage, large air seeders, grain carts and heavy cultivation. Its combination of high horsepower, excellent weight distribution and advanced steering technology allowed operators to cover more acres with greater efficiency while reducing soil disturbance during headland turns.

Years of operating under maximum drawbar loads eventually affect transmission clutch packs, steering hydraulics, planetary final drives, hydraulic pumps and PTO components. Restoring factory performance requires official workshop procedures instead of trial-and-error repairs. This OEM Factory Repair Service Manual provides dealership-level repair procedures for the Case IH 4894 Tractor, covering systematic diagnostics, inspection, complete disassembly, overhaul, calibration and operational testing. Factory publication RAC 8-26420 contains comprehensive repair information for the engine, transmission, hydraulic system, steering circuits, axles, electrical system and chassis assemblies using the same service methods followed by authorized Case IH technicians.

Machine Specifications

A Rigid Chassis Built For Maximum Field Efficiency

Unlike articulated four-wheel-drive tractors, the 4894 uses a rigid-frame design with selectable front, rear and crab steering to improve maneuverability without interrupting power delivery. This configuration provides excellent stability when operating wide tillage equipment while reducing crop damage during turning operations. Professional technicians typically begin major repairs by verifying steering synchronization, hydraulic pressure, transmission clutch performance and planetary axle condition before dismantling major components. This approach reduces unnecessary parts replacement while restoring original factory performance. The 4894 is widely recognized as a 300 HP rigid-frame four-wheel-steer tractor designed for large-scale tillage applications.

OEM Workshop Coverage

Dealer Workshop Procedures Included

• Synchronizing front and rear steering circuits after hydraulic servicing.
• Testing PFC hydraulic pump performance under maximum implement demand.
• Inspecting powershift clutch pressures before transmission overhaul.
• Checking planetary final drives after prolonged heavy tillage operation.
• Adjusting hydraulic priority valves for balanced steering response.
• Servicing remote hydraulic valves used with air seeders and cultivators.
• Tracing electrical faults using OEM wiring diagrams.
• Inspecting PTO engagement following transmission repairs.
• Verifying hydraulic oil flow through auxiliary outlets.
• Completing full operational testing before returning the tractor to field service.

Manual Specifications

Frequently Asked Questions

Which tractor model is covered by this repair manual?

This OEM factory workshop manual covers the Case IH 4894 rigid-frame four-wheel-drive agricultural tractor.

Does the manual include four-wheel steering and hydraulic repairs?

Yes. It covers front steering, rear steering, crab steering synchronization, PFC hydraulic diagnostics, triple-pump servicing and complete hydraulic troubleshooting.

Are transmission and planetary axle overhaul procedures included?

Yes. The manual provides complete procedures for partial powershift transmission repairs, clutch servicing, planetary hubs, differentials and final drives.

Does this manual contain OEM electrical wiring diagrams?

Yes. Factory wiring diagrams, charging system diagnostics, starter circuits, instrumentation and complete electrical troubleshooting are included.

Who is this factory repair manual designed for?

It is intended for Case IH dealership technicians, agricultural equipment workshops, commercial farming operations, fleet maintenance teams and experienced owners performing professional tractor repairs.
