Case IH 3394, 3594 Tractor Pdf Service Repair Manual

Case IH 3394, 3594 Tractor PDF Repair Service Manual

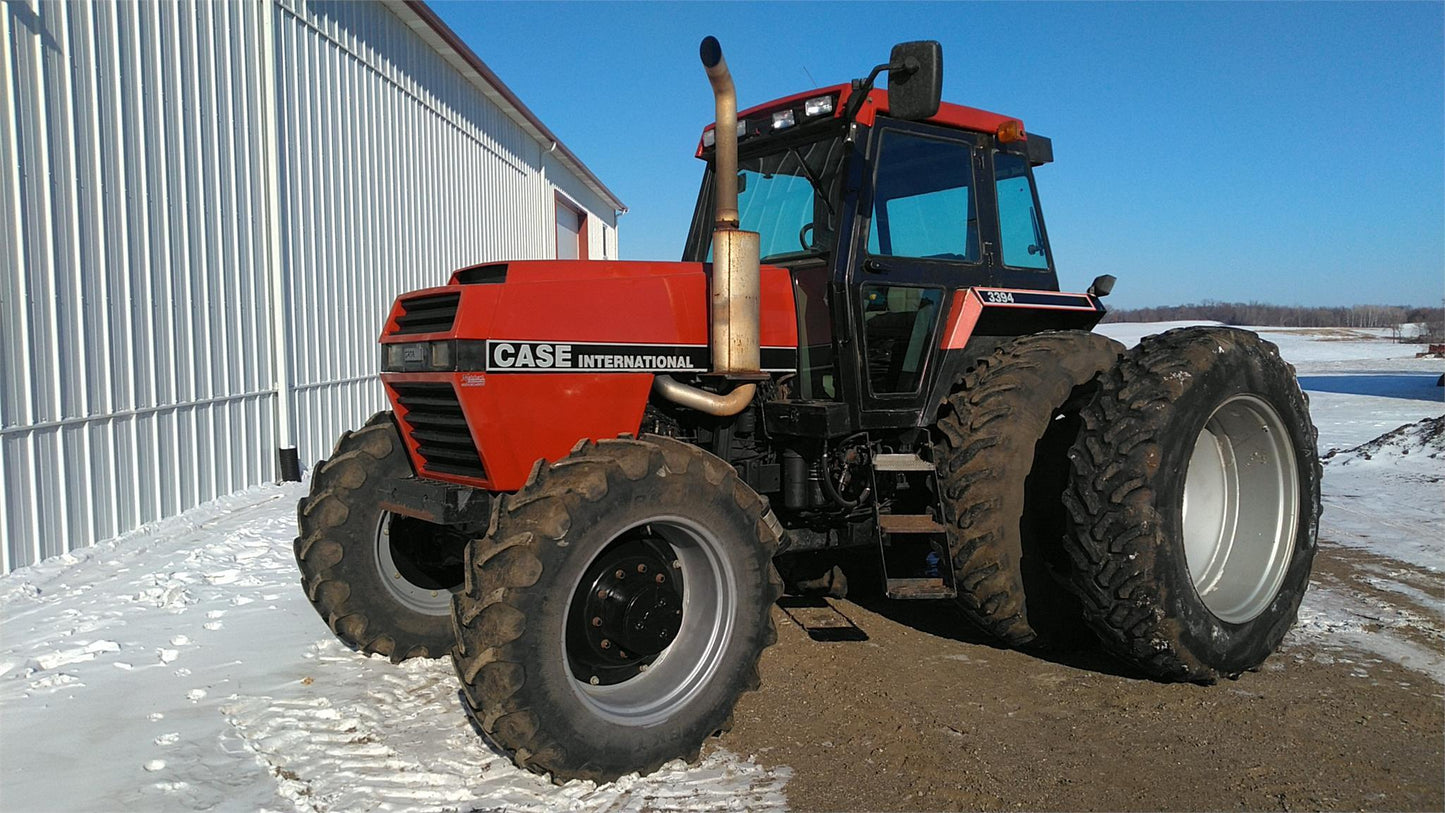

When planting schedules are tight and every weather window counts, reliability becomes just as important as horsepower. The Case IH 3394 and 3594 tractors were engineered for professional farming operations that demanded dependable pulling power, responsive hydraulics and comfortable long-hour operation. Positioned at the top of the conventional 94 Series lineup, these tractors were equally capable of handling deep tillage equipment, heavy cultivators, large seed drills, forage harvesters and high-capacity grain transport, making them true multi-purpose machines for commercial agriculture.

Continuous operation with heavy implements gradually affects powershift clutch packs, hydraulic pumps, steering systems, PTO assemblies, rear axle components and braking systems. Accurate repairs require official workshop procedures rather than replacing expensive components through guesswork. This OEM Factory Repair Service Manual provides dealership-level repair information for the Case IH 3394 and 3594 tractors, covering professional diagnostics, inspection, complete disassembly, overhaul, adjustment, calibration and final operational testing. The factory workshop manual includes detailed repair procedures for the engine, transmission, hydraulic system, electrical circuits, steering, brakes, PTO and chassis assemblies using the same service methods followed by authorized Case IH technicians.

Machine Specifications

Built For High-Demand Agricultural Workloads

The 3394 and 3594 were designed to spend long days operating high-draft implements while maintaining consistent hydraulic performance for modern agricultural equipment. Their pressure-and-flow-compensated hydraulic system allows multiple hydraulic functions to operate smoothly under varying loads, while the three-speed powershift transmission enables operators to shift efficiently without interrupting field productivity. During repairs, experienced technicians first verify hydraulic pressure, transmission clutch engagement, PTO performance and steering operation before dismantling major assemblies, ensuring accurate diagnosis and minimizing unnecessary parts replacement.

OEM Workshop Coverage

Professional Workshop Procedures Included

• Measuring powershift clutch pressures before transmission disassembly.
• Testing hydraulic pump output with high-demand field implements.
• Inspecting PTO clutch engagement and operating speed.
• Checking remote hydraulic valve flow using factory specifications.
• Inspecting rear axle bearings during differential overhaul.
• Adjusting steering linkage after front axle repairs.
• Tracing electrical faults using OEM wiring diagrams.
• Inspecting wet disc brake components for proper operation.
• Verifying cooling system performance under continuous heavy load.
• Completing complete operational testing before returning the tractor to field service.

Manual Specifications

Frequently Asked Questions

Which tractor models are covered by this repair manual?

This OEM factory workshop manual covers the Case IH 3394 and Case IH 3594 agricultural tractors.

Does this manual include powershift transmission overhaul procedures?

Yes. It covers clutch pack servicing, transmission diagnostics, hydraulic pressure testing, calibration and complete powershift overhaul.

Are hydraulic system and PTO repairs included?

Yes. The manual includes hydraulic pump servicing, remote valve diagnostics, three-point hitch repairs, PTO clutch servicing and complete hydraulic troubleshooting.

Does the manual contain OEM electrical wiring diagrams?

Yes. Factory wiring diagrams, charging system diagnostics, starter circuits, lighting systems and complete electrical troubleshooting are included.

Who is this repair manual designed for?

It is ideal for Case IH dealership technicians, agricultural machinery workshops, commercial farm maintenance teams, restoration professionals and experienced owners performing professional tractor repairs.
