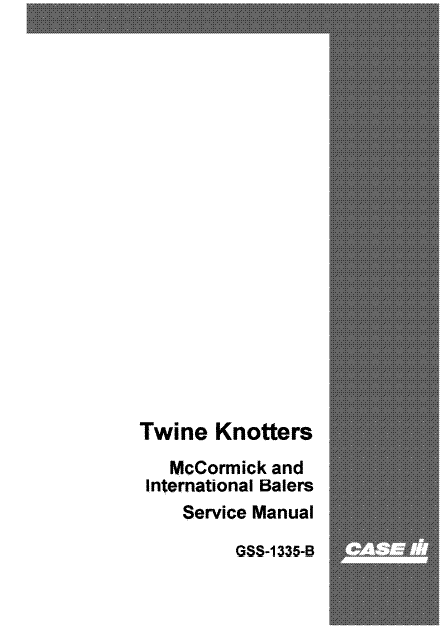

The Case IH 27, 37, 46, 47, 57 Twine Knotters Balers Service Manual is a specialized workshop reference focused on one of the most important systems of these classic Case IH balers — the twine tying mechanism. A baler can have strong pickup and compression performance, but if the knotter timing, adjustment, or worn components are incorrect, the machine will fail to produce properly tied bales.

This Case IH Twine Knotter Service Manual PDF provides detailed service information for the knotter assemblies used on Case IH 27, 37, 46, 47, and 57 balers. It includes knotter inspection, adjustment procedures, troubleshooting guidance, component removal, installation steps, timing information, and mechanical service procedures required when repairing or restoring the baler tying system.

Twine Knotter System Overview For Case IH Balers

The knotter assembly is the precision mechanical system responsible for completing the tying cycle after hay material is compressed into a bale. Unlike many basic mechanical repairs, knotter service requires correct relationships between multiple moving components because small adjustment errors can cause missed knots, broken twine, loose bales, or inconsistent tying.

The Case IH 27, 37, 46, 47, and 57 balers were built around mechanical hay harvesting systems where correct synchronization between the plunger, needles, twine handling components, and knotter mechanism is essential. This service manual helps technicians understand how these components interact during operation.

Case IH Baler Model Information

Machine Details	Information
Manufacturer	Case IH / International Harvester
Covered Models	27, 37, 46, 47, 57 Balers
Equipment Category	Agricultural Hay Baler
Bale Type	Small Square Bale Production Equipment
Main Covered System	Twine Knotter And Tying Mechanism
Crop Handling Process	Pickup, Feeding, Compression, Bale Formation & Twine Tying
Knotter Operation Type	Mechanical Twine Knotting System
Related Components	Needles, Bill Hooks, Twine Discs, Knife Arms, Gears & Linkages
Common Service Situations	Missed Knots, Poor Tying, Incorrect Timing & Component Wear
Application	Farm Operation, Baler Repair, Restoration & Workshop Service

Real Repair Problems This Manual Helps Diagnose

Experienced baler mechanics know that knotter issues are often caused by adjustment problems rather than a single failed part. The Case IH Baler Knotter Service Manual helps users inspect the complete tying cycle and locate the cause of problems systematically.

• Incomplete knot formation: Follow inspection procedures for twine handling parts, knotter movement, and component condition.
• Needle and knotter timing issues: Check correct synchronization between the tying system and bale forming components.
• Twine cutting problems: Service knife arms, cutting components, adjustment points, and related assemblies.
• Loose or inconsistent bale tying: Inspect twine tension, knotter adjustment, and mechanical settings affecting finished bales.
• Worn knotter components: Identify service procedures for high-wear mechanical parts inside the tying assembly.
• Post-overhaul setup: Perform adjustment checks after rebuilding or replacing knotter components.

Service Manual Technical Details

Manual Specification	Description
Manual Name	Case IH 27, 37, 46, 47, 57 Twine Knotters Balers Service Manual
Manual Type	Workshop Service / Repair Reference
Primary Coverage	Twine Knotter Repair, Adjustment & Troubleshooting
Machine Coverage	Case IH 27, 37, 46, 47, 57 Baler Models
Procedures Included	Inspection, Removal, Installation, Adjustment & Mechanical Service
Component Information	Knotter Assembly, Needles, Twine Control Parts & Drive Components
Technical Use	Repair Diagnosis, Overhaul Support & Workshop Reference
Format	PDF Digital Download
Compatible Devices	Computer, Laptop, Tablet, Smartphone & PDF Reader Applications
Customer Support	24/7 Live Customer Chat Support Available

Covered Knotter And Mechanical Service Areas

The Case IH 27 37 46 47 57 Baler Service Manual PDF concentrates on the components that directly affect the tying process and baler reliability.

• Twine disc and holder assemblies: Service information for components controlling twine positioning during knot formation.
• Bill hook mechanism: Procedures for inspection, adjustment, and servicing of knot forming components.
• Needle system: Covers needle positioning, adjustment checks, and related mechanical connections.
• Knotter drive components: Information for gears, shafts, linkages, and operating mechanisms.
• Twine tension areas: Adjustment guidance for maintaining proper twine control during baling.
• Mechanical troubleshooting: Helps locate causes of tying failures and irregular baler operation.

Useful For Classic Baler Restoration And Repair

The Case IH Twine Knotters Repair Manual PDF is especially helpful for older balers where years of field use can create wear in several connected components. Correctly rebuilding the knotter system requires checking adjustments, timing, and mechanical condition together.

This manual is suitable for farm owners, agricultural mechanics, restoration projects, and equipment repair shops working to keep Case IH square balers operating correctly.

Instant PDF Download

The Case IH 27 37 46 47 57 Twine Knotter Service Manual PDF is available for instant download after secure checkout. Store the manual digitally and access knotter repair information whenever workshop service is required.

The PDF works on computers, tablets, smartphones, and common PDF readers. Customers also receive 24/7 live customer chat support for download assistance.

Frequently Asked Questions

What part of the baler does this service manual focus on?

This manual focuses on the twine knotter system, including tying components, adjustments, inspection, and repair procedures.

Does it cover all listed Case IH baler models?

Yes. It covers knotter service information for Case IH 27, 37, 46, 47, and 57 balers.

Can this manual help fix missed knot problems?

Yes. It provides troubleshooting and adjustment information for problems affecting knot formation and tying performance.

Is this useful after replacing knotter components?

Yes. The manual helps with setup checks and adjustments after component replacement or overhaul work.

Does this replace the complete baler service manual?

No. This manual focuses specifically on twine knotter service. Complete machine repair information may require the full baler service manual.

Can I keep the PDF for future repairs?

Yes. After downloading, the file can be saved and used whenever knotter service information is needed.
