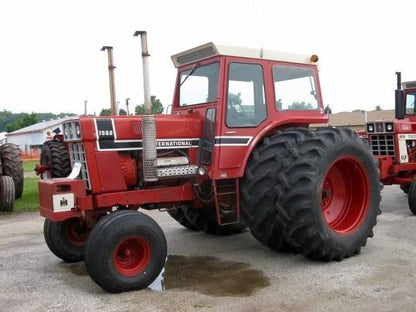

Case IH 1568 Tractor Pdf Service Repair Manual

Case IH 1568 Tractor PDF Repair Service Manual

The Case IH 1568 Tractor PDF Repair Service Manual is a factory workshop reference developed for professional agricultural mechanics, restoration specialists, collectors, and farm owners servicing one of International Harvester's most distinctive high-horsepower tractors. Unlike general maintenance guides, this manual explains factory repair procedures for complete engine rebuilding, transmission service, hydraulic diagnostics, PTO repairs, steering adjustments, electrical troubleshooting, and major component overhauls.

The International Harvester 1568 occupies a unique place in tractor history because it was one of the very few production row-crop tractors equipped with a naturally aspirated V8 diesel engine. Built in limited numbers between 1974 and 1976, the 1568 combined exceptional horsepower with the proven 66 Series chassis, making it suitable for heavy primary tillage, deep ripping, large cultivators, grain carts, and high-capacity PTO equipment. Because replacement parts for these tractors are valuable and increasingly difficult to source, following factory repair procedures is essential when rebuilding or restoring the machine.

Case IH 1568 Tractor Machine Specifications

Why The 1568 Requires A Different Repair Approach

Unlike the six-cylinder models in the 66 Series, the 1568 uses the large DV-550 V8 diesel engine. During major repairs, technicians must consider the longer cooling system, dual cylinder banks, V8 lubrication circuit, larger flywheel assembly, and additional engine weight when performing engine removal or overhaul procedures.

The factory manual explains inspection tolerances, tightening sequences, component measurements, and adjustment procedures that are particularly important when rebuilding this unique V8 platform. Proper repair methods help prevent overheating, uneven cylinder bank performance, oil pressure loss, and premature drivetrain wear.

Factory Workshop Coverage

Real Workshop Diagnostic Examples

• V8 engine overheating: Inspect radiator efficiency, coolant circulation, fan drive, thermostat operation, and cylinder bank temperature differences before replacing engine components.
• Loss of drawbar power: Check engine fuel delivery, Torque Amplifier engagement, clutch pressure, transmission condition, and rear differential before dismantling the drivetrain.
• Hydraulic hitch slow to respond: Measure pump output, inspect priority valves, test hydraulic pressure, and examine hitch control linkage.
• PTO slipping under heavy forage equipment: Diagnose PTO clutch wear, hydraulic pressure, engagement linkage, and output shaft condition.
• Heavy steering effort: Inspect hydrostatic steering unit, steering pump output, hydraulic oil condition, and steering cylinders.

Key Repair Procedures Included

• Complete DV-550 V8 engine rebuilding procedures
• Torque Amplifier transmission adjustments and overhaul
• Hydraulic pump performance testing
• Rear differential backlash measurements
• Independent PTO clutch servicing
• Hydraulic remote valve diagnostics
• Brake system inspection and adjustment
• Electrical wiring fault diagnosis
• Cooling system repairs and pressure testing
• Final drive bearing replacement procedures

Case IH 1568 PDF Manual Specifications

Frequently Asked Questions

Does this manual include complete DV-550 V8 engine overhaul procedures?

Yes. The manual includes complete engine disassembly, inspection, rebuilding procedures, lubrication system service, cooling system repairs, and factory specifications for the International DV-550 V8 diesel engine.

Is Torque Amplifier troubleshooting included?

Yes. The manual covers Torque Amplifier diagnostics, hydraulic testing, clutch adjustments, overhaul procedures, and transmission servicing.

Are hydraulic pressure specifications and wiring diagrams included?

Yes. It contains hydraulic schematics, pressure testing procedures, electrical wiring diagrams, charging system diagnostics, and troubleshooting information.

Can this manual be used to restore a rare Case IH 1568 tractor?

Yes. It is intended for complete restorations, professional workshop repairs, preventative maintenance, and major component rebuilding.

Does the manual cover PTO and final drive repairs?

Yes. Independent PTO servicing, differential repairs, axle inspections, final drive rebuilding, and brake system repairs are included.
