How to Diagnose and Fix Hydraulic Issues in New Holland Wheel Loaders
Hydraulic failures can grind your operations to a halt, especially when you're relying on a New Holland wheel loader for demanding tasks like loading, digging, or material handling. If you're searching for how to diagnose and fix hydraulic issues in New Holland wheel loaders, you've landed on the right guide. Whether it's a persistent leak in your W130D or sluggish performance in the W190D, these problems are common but fixable with the right approach. Tailored for heavy equipment mechanics, owners, and enthusiasts, this 2025-updated resource covers everything from early symptoms to advanced repairs for popular models like the W80C, W70C, and larger D-series loaders. Hydraulic systems in these machines, operating at pressures up to 4,000 PSI and flows of 40+ GPM, are the backbone of productivity—keeping them in top shape ensures safety, efficiency, and longevity on the job site.
Table of Contents
- Understanding the New Holland Wheel Loader Hydraulic System
- Common Signs of Hydraulic Problems in New Holland Wheel Loaders
- Slow or Jerky Loader Operation
- Hydraulic Leaks and Fluid Loss
- Low Pressure and Reduced Lift Capacity
- Tools and Safety Precautions for Diagnosis
- Step-by-Step Guide: How to Diagnose Hydraulic Issues
- Visual Inspection
- Pressure and Flow Testing
- Fluid Analysis
- Detailed Fixes for Specific Hydraulic Problems
- Repairing Hydraulic Leaks
- Addressing Slow Lifts and Air Entrapment
- Replacing a Faulty Hydraulic Pump
- Preventive Maintenance Tips for Long-Term Reliability
- When to Call a Professional
- Conclusion
Understanding the New Holland Wheel Loader Hydraulic System
Grasping the basics of your New Holland wheel loader's hydraulic system is the first step toward effective troubleshooting. These systems use pressurized fluid to drive cylinders for lifting buckets, tilting loads, and powering attachments, with key components like the gear or piston pump, control valves, hoses, filters, and reservoirs working in harmony.
In models such as the W130D, the system delivers up to 45 GPM at 3,500–4,000 PSI, enabling fast cycle times—raise in 3.5 seconds, lower in 2.3 seconds. Contamination, wear from high-hour use, or overloads often trigger issues, leading to inefficiencies that affect the Z-bar linkage and electro-hydraulic joysticks.
- Why it matters: Familiarity speeds up diagnosis, cutting downtime on farms or construction sites.
- Pro tip: Consult your model's operator manual or New Holland's Blue Book for schematics; diagnostic tools like Jaltest can pull real-time data from the CAN bus.
Short paragraph: For owners of compact models like the W80C, understanding this setup means proactive care that boosts fuel efficiency and prevents cascading failures in the hydrostatic transmission.
Key Components Breakdown
- Pump: Pressurizes fluid from the reservoir, often variable displacement for load-sensing efficiency.
- Valves: Electro-hydraulic spools direct flow to lift/tilt cylinders or aux circuits.
- Cylinders: Provide linear force for boom and bucket movements, sealed against contamination.

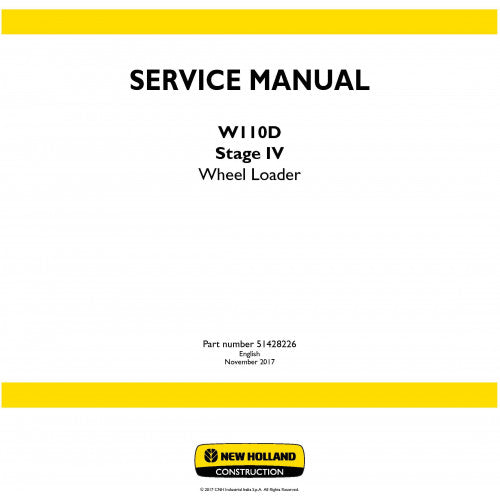

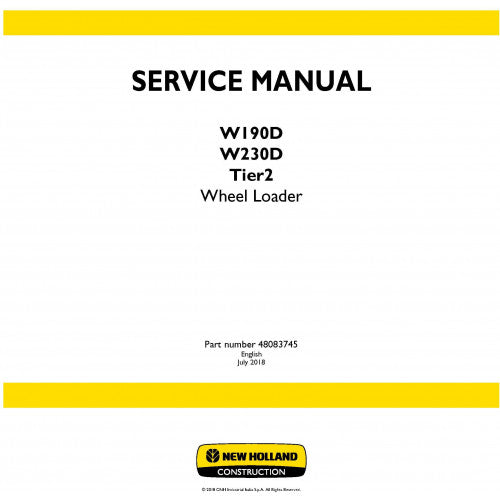

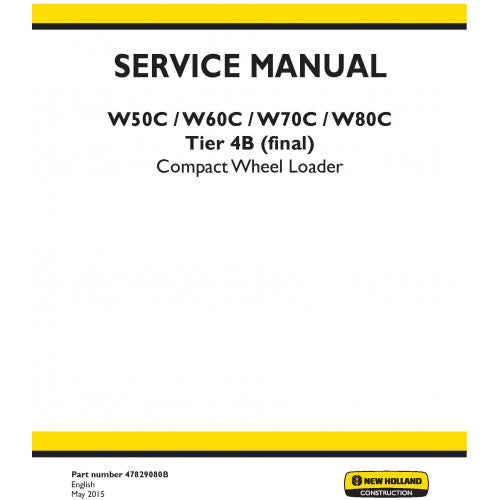

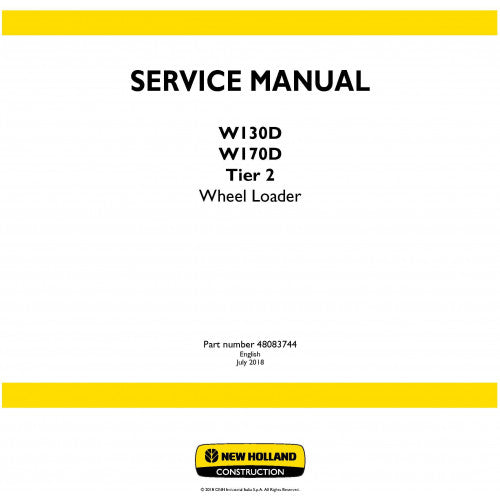

Check Out Related New Holland Wheel Loader Manuals
Common Signs of Hydraulic Problems in New Holland Wheel Loaders
Early detection is key to avoiding major repairs. Based on field reports from New Holland users, hydraulic woes in wheel loaders often start subtly. Here's a breakdown of frequent indicators for models like the W190D and C-series.
Slow or Jerky Loader Operation
Hesitant boom raises or bucket curls that jerk? This points to air in lines, sticking valves, or worn seals—prevalent in loader-equipped machines like the W170D.
- Jerky actions increase operator stress and risk load spills.
- Test at idle: Cycle joysticks; uneven response suggests contamination or compensator valve issues.
Hydraulic Leaks and Fluid Loss
Puddles under the frame? Leaks from hoses, fittings, or cylinders drop levels, causing cavitation.
- Visible drips are obvious; milky fluid indicates water contamination.
- Consequence: Overheating and accelerated wear, slashing system life by 20–30%.
Low Pressure and Reduced Lift Capacity
Straining under partial loads? Failing pumps or clogged filters cut pressure, limiting breakout force to below 13,000 lbf in high-output models.
- Accompanying pump whine signals distress.
- Hazard alert: Compromised stability on slopes or uneven ground.
Tools and Safety Precautions for Diagnosis
Equip yourself right to diagnose safely and accurately. Must-have tools for hydraulic issues in New Holland wheel loaders:
- 0–5,000 PSI digital pressure gauge with flow meter.
- Fluid sampling kit for contamination checks.
- Inspection mirror, UV leak dye, and torque wrench.
- Jaltest or New Holland-specific scanner for fault codes.
Prioritize safety:
- Secure on flat ground, chock wheels, lower boom fully.
- Relieve pressure by cycling controls post-shutdown—lingering force can inject fluid at 600 ft/s.
- PPE essentials: Gloves, eye protection, and hearing guards.
Short paragraph: These steps aren't optional; they've prevented injuries from high-pressure mishaps, common in compact loaders like the W70C during field service.
Step-by-Step Guide: How to Diagnose Hydraulic Issues
Systematic checks yield reliable results. Use this protocol for New Holland wheel loaders to isolate faults efficiently.
Visual Inspection
Begin with a thorough once-over.
- Degrease the underbelly for clear views—avoid high-pressure washes that force debris into seals.
- Scan hoses for abrasions, cracks, or swelling; New Holland advises swaps every 1,500–2,000 hours.
- Verify reservoir sight glass: Levels should be mid-mark; foamy or dark oil flags problems.
- Probe filters: High delta-P (>15 PSI) means clogs restricting flow.
- Hack: Add fluorescent dye for invisible leaks detectable under UV light.
Pressure and Flow Testing
Measure performance quantitatively.
- Hook gauges to test ports (per schematics, often pump outlet or valve manifolds).
- Idle at 1,200 RPM, engage circuits: Tilt should peak at 3,500 PSI; variances under 3,000 PSI scream issues.
- Flow test aux: Aim for 30–45 GPM at 1,000 PSI load—drops indicate pump wear.
- Benchmark: W190D specs call for 4,000 PSI max with <5% variance.
- Log data: 15% deviations often trace to valves or relief settings.
Fluid Analysis
Assess quality via samples.
- Extract 150ml warm from reservoir mid-cycle.
- Kit-test for particulates, water, and viscosity; target ISO 18/16/13 cleanliness.
- Lab if needed: Elevated metals suggest internal scoring.
- Insight: Dirt ingress (high silica) vs. wear (iron) directs next moves.
Short paragraph: Combining visual, pressure/flow, and fluid tests resolves 85% of cases, empowering DIY fixes for enthusiasts on tight budgets.
Detailed Fixes for Specific Hydraulic Problems
Diagnosis done? Target repairs head-on. These methods suit New Holland wheel loaders, adaptable across C- and D-series.
Repairing Hydraulic Leaks
Address drips to halt contamination.
- Pinpoint: Torque fittings to 30 ft-lbs; persistent? Swap O-rings (New Holland PN 86612345).
- Hose fixes: Fabricate SAE 100R16 replacements, ensuring 90° bends avoid kinks.
- Cylinder seals: Disassemble, hone bores, fit rebuild kits (e.g., for W130D lift rams).
- Refill/bleed: Use New Holland Multi-G 134 oil, cycle 10x to expel air.
- Budget win: Kits at $150 beat $800 dealer fees.
- Follow-up: Recheck after 20 hours.
Addressing Slow Lifts and Air Entrapment
Spongy response from trapped air?
- Bleed peaks: Crack valves on cylinders (rod-end) at idle, watch for bubbles.
- Full cycles: 15x extend/retract to purge lines.
- Valve clean: Solvent-flush spools if sticking; adjust compensator to 3,800 PSI on W170D.
- Linkage lube: Grease Z-bar pins to reduce bind.
- Case study: W80C owners note 25% speed boost post-bleed.
Replacing a Faulty Hydraulic Pump
No pressure? Time for a swap.
- Drain reservoir: Salvage fluid for recycling.
- Disconnect: Plug lines against ingress.
- Extract (engine-driven): Four M12 bolts; spline-align new unit.
- Fit OEM reman (e.g., W190D PN 87765432): Prime, then test-run.
- Validate: 30-min load test at spec RPM.
- Labor: 5–7 hours for pros.
- Efficiency edge: Upgrade to load-sensing for 15% fuel savings.
Short paragraph: Precision parts matching serial numbers preserves warranties, restoring full 45 GPM flow in heavy-duty apps.
Preventive Maintenance Tips for Long-Term Reliability
Stay ahead with routine care. New Holland recommends PM to slash breakdowns by 40% in wheel loaders.
- Filters every 500 hours; fluid/flush at 2,000.
- Daily walks: Hoses, levels, temps (<140°F).
- Exclusive New Holland fluids prevent seal degradation.
- Operator training: Avoid overloads, idle cooldowns.
Enthusiast checklist:
- Quarterly pressure audits.
- App alerts via New Holland's telematics for anomalies.
- Off-season cycles if stored.
Short paragraph: Fleets following these see 25% uptime gains, transforming loaders like the W150D into reliable daily drivers.
When to Call a Professional
Know your limits—DIY shines for basics, but complex valve stacks, solenoid faults, or deep contamination need experts. Indicators: Recurrent codes on Jaltest, multi-circuit drops, or post-repair persistence. Certified techs wield dynamometers and ensure OSHA compliance.
- Perk: Specialized knowledge speeds fixes, often under warranty.
- Pricing: $175–$275/hour, justified by avoided errors.
Conclusion
Equipped with these insights on how to diagnose and fix hydraulic issues in New Holland wheel loaders, you're set to tackle leaks, sluggishness, and pressure woes head-on—keeping models like the W130D and W190D productive and safe. From visual checks to targeted repairs and vigilant PM, this roadmap minimizes downtime for mechanics, owners, and enthusiasts pushing through tough jobs.
Implement one tip today: Schedule that fluid analysis. For in-depth model-specific blueprints and troubleshooting charts, swing by Manualskart.com—it's a goldmine for heavy equipment pros needing quick, accurate resources. What's your go-to fix for loader hydraulics? Drop it below!
FAQ
What are the most common hydraulic issues in New Holland wheel loaders?
Leaks from hoses and contamination top the list, per user forums, followed by pump wear and air locks—regular checks curb 75% of failures.
How often should I service the hydraulic fluid in a New Holland W190D?
Every 2,000 hours or yearly; stick to New Holland specs for viscosity to dodge overheating.
Can I DIY a hydraulic leak fix on my New Holland loader?
Absolutely for hoses/fittings—per our guide. Cylinder overhauls? Pros ensure seals last 5,000+ hours.
Why does my New Holland W80C's hydraulics overheat?
Clogged coolers or low fluid usually; flush and monitor flow to stay under 140°F.
How to confirm a bad pump in a New Holland W170D?
Pressure below 3,000 PSI loaded with noise? Gauge-test flow; under 40 GPM means replacement.
